Imthacaí Sorcóir Trasnaithe (Imthacaí Tras-Sorcóra) Úsáideann Imthacaí Rollaí Trasnaithe, ar a dtugtar imthacaí tras-sorcóir freisin, struchtúr inmheánach ina ndéantar rollóirí sorcóireacha a shocrú trasna ag uillinn 90 ° dá chéile laistigh de rásbhealaí V-chruthach. Cuirtear deighilteoirí nó spásairí idir na rollóirí. Leis an struchtúr seo is féidir imthacaí aonair a láimhseáil go comhuaineach ualaí i ngach treo, lena n-áirítear ualaí gathacha, ualaí aiseach, agus móimintí casaithe. Tá na himthacaí tréithrithe ag a n-íosmhéid toisí foriomlána (miniaturization), ard-rigidity, cruinneas rothlach ard, agus cumas ualachiompartha comhcheangailte. Dá bhrí sin, is fearr a oireann dóibh: Siúntaí nó páirteanna rothlacha de robots tionsclaíocha. Páirteanna rothlacha manipulators / robot hands.Rotary tables of machineing centres.Precision rothlach táblaí.Medical equipment.Measuring instruments.IC mhonarú trealaimh, agus iarratais eile. Cineálacha Struchtúracha Imthacaí Sorcóir Trasnaithe Déantar imthacaí sorcóir trasnaithe a rangú go ginearálta i dtrí fhoirm struchtúracha: Fáinne seachtrach inscartha, fáinne istigh comhtháite. Fáinne seachtrach comhtháite, fáinne istigh inscartha. Tá fáinní seachtracha agus istigh araon comhtháite.
1. Cineál RB (Fáinne Amuigh Inscartha, Fáinne Inmheánach Comhtháite) Struchtúr: Tá an fáinne seachtrach roinnte ina dhá phíosa, agus is comhpháirt amháin, comhtháite é an fáinne istigh. Iarratas: Oiriúnach d'iarratais óna dteastaíonn cruinneas ard rothlach an fháinne istigh.
2. Struchtúr Cineál RE (Fáinne Amuigh Chomhtháite, Fáinne Inscartha Inscartha): An bhfuil na toisí seachtracha céanna leis an gcineál RB, ach tá an fáinne seachtrach comhtháite, agus tá an fáinne istigh roinnte ina dhá phíosa. Iarratas: Oiriúnach d'iarratais a éilíonn cruinneas ard rothlach an fháinne seachtrach.
3. Cineál RU (Fáinní Comhtháite Istigh agus Amuigh, le Poill Gléasta) Struchtúr: Tá na fáinní inmheánacha agus seachtracha araon comhtháite agus is gné-phoill gléasta iad. Cuireann sé seo deireadh leis an ngá atá le flanges agus suíocháin tacaíochta a shocrú, rud a fhágann go bhfuil sé an-áisiúil é a úsáid. Feidhmíocht: Ós rud é go bhfuil na fáinní inmheánacha agus seachtracha comhtháite, tá an tsuiteáil éifeacht íosta ar fheidhmíocht, ag cinntiú cruinneas rothlach cobhsaí agus chasmhóiminte.Iarratas: Oiriúnach d'iarratais a éilíonn cruinneas rothlach ard do na fáinní laistigh agus lasmuigh.
4. Cineál RA (Fáinne Amuigh Inscartha, Fáinne Inmheánach Comhtháite, Ultra-Thin) Struchtúr: Dearadh ultra-tanaí ina laghdaítear tiús na bhfáinní inmheánacha agus seachtracha chomh fada agus is féidir. Tá an struchtúr mar an gcéanna leis an gcineál RB, le fáinne seachtrach scoilte. Iarratas: Oiriúnach do chodanna a dteastaíonn dearadh éadrom agus dlúth, mar shampla na hailt rothlacha de robots agus manipulators.
5. Cineál RBH (Fáinní Comhtháite Istigh agus Amuigh, Ultra-Thin) Struchtúr: Dearadh ultra-tanaí le fáinní inmheánacha agus seachtracha comhtháite, ach gan poill gléasta. Éilíonn a shocrú le flanges agus suíocháin tacaíochta le linn install.Performance: Cosc ar struchtúr comhtháite an dá fháinne díghrádú feidhmíochta mar gheall ar shuiteáil, ag cinntiú cruinneas rothlach cobhsaí agus torque.Application: Oiriúnach d'iarratais a éilíonn méid beag (miniaturization) agus cruinneas rothlach ard a chothabháil do na fáinní laistigh agus lasmuigh.

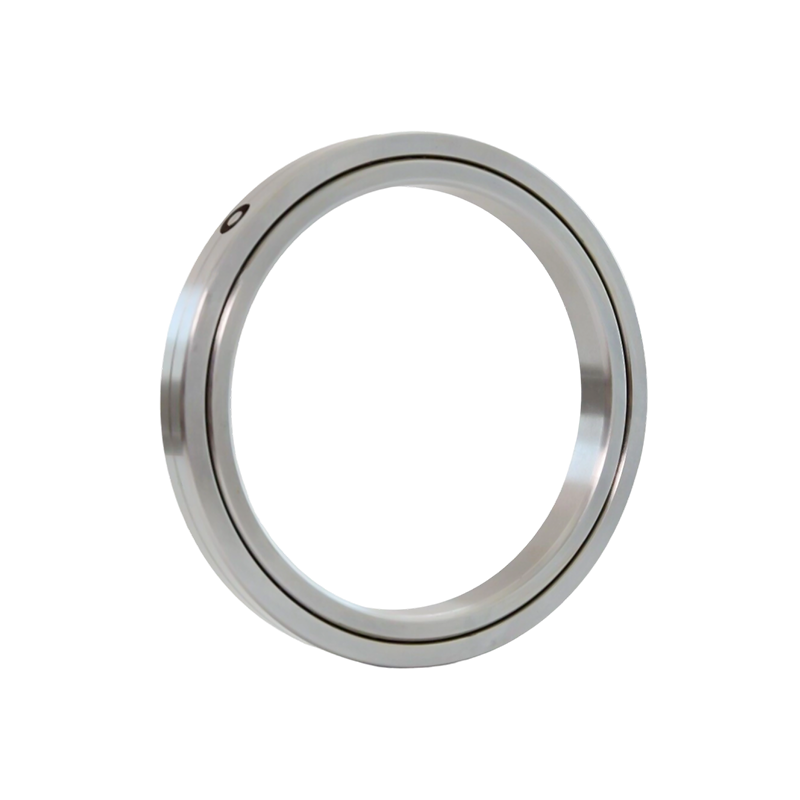

6. Cineál SX (Fáinne Inmheánach Comhtháite, Fáinne Amuigh Inscartha, Ultra-Thin) Struchtúr: Maidir leis an trastomhas seafta céanna, tá trasghearradh níos lú ag an gcineál SX ná an cineál RB. Mar gheall ar an dearadh ultra-tanaí, níl poill gléasta ag na fáinní inmheánacha ná seachtracha, rud a éilíonn socrú le flanges agus suíocháin imthacaí le linn na suiteála. Feidhmchlár: Oiriúnach d’fheidhmchláir ina rothlaíonn an fáinne istigh.

Innealtóireacht Todhchaí na Gluaisne
Maidir le UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Imthacaí Tras-Sorcóir manufacturers and Imthacaí Tras-Sorcóir factory, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd Tuilleadh Fúinn Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    blianta

    Taithí Tionscail

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Éagsúlacht múnla

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Líon Fostaithe

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Luach onnmhairithe bliantúil

Ukl Bearing Manufacturing Co.,Ltd
Deimhniú Onóra
Nuacht
Imthacaí Tras-Sorcóir Industry knowledge

In the world of precision engineering, the demand for components that offer simultaneous high rigidity, space-saving designs, and multi-directional load capacity has never been higher. Cross Roller Bearings have emerged as the gold standard for high-performance rotary motion, particularly in industries where precision is non-negotiable.

What Are Cross Roller Bearings?

Cross Roller Bearings are specialized rolling-element bearings where cylindrical rollers are arranged orthogonally—positioned at right angles to each other—within V-shaped raceways. This unique “crossed” configuration allows a single bearing to handle radial, axial, and moment loads simultaneously.

Unlike traditional ball bearings, which rely on point contact, the cylindrical rollers in a cross roller bearing provide line contact. This significantly increases the contact surface area, resulting in superior stiffness and minimal elastic deformation under heavy or complex loads.

Key Advantages of Cross Roller Bearings

  • High Rotational Accuracy: The orthogonal arrangement reduces skewing and friction, ensuring exceptionally low runout.
  • Superior Rigidity: Cross roller bearings are 3 to 4 times more rigid than standard angular contact ball bearings.
  • Compact Footprint: Because one cross roller bearing can replace two traditional bearings (like a thrust + radial combination), it allows for significant downsizing of equipment.
  • Simplified Installation: Modern designs, such as those with mounting holes, allow for direct bolting to the housing, reducing assembly complexity.

Comparison: Cross Roller Bearings vs. Traditional Bearings

To help you choose the right solution for your equipment, the following table compares the performance metrics of Cross Roller Bearings against common alternatives.

Feature Cross Roller Bearings Deep Groove Ball Bearings Tapered Roller Bearings
Load Direction Radial + Axial + Moment Primarily Radial Radial + Single-way Axial
Rigidity Ultra-High Moderate High
Space Requirement Minimal (Compact) Moderate Large (often requires pairs)
Precision Grade P2 / P4 / P5 P0 / P6 P5 / P6
Main Application Robotics, CNC Tables Motors, Appliances Automotive, Heavy Industry

Applications in Modern Industry

As a professional bearing factory in China, UKL provides technical support for global industries that require reliable, high-precision movement. Our Cross Roller Bearings are vital components in:

  1. Industrial Robotics: Used in the “waist,” “shoulder,” and “elbow” joints of robotic arms to ensure smooth and accurate positioning.
  2. CNC Rotary Tables: Providing the stability needed for high-speed machining and vertical boring mills.
  3. Medical Equipment: Essential for the high-precision rotation required in CT scanners and MRI machines.
  4. Aerospace & Defense: Supporting radar pedestals and precision satellite tracking systems.

Why Choose UKL Bearing Manufacturing Co., Ltd.?

As an integrated industrial and trading enterprise, UKL Bearing Manufacturing Co., Ltd. (Wuxi) stands out in the competitive landscape through our commitment to precision and flexible service.

1. Integrated Manufacturing Excellence

Unlike many trading firms, UKL operates a fully modernized production base. Our facilities cover the entire manufacturing lifecycle: Forging → Annealing → Turning → Heat Treatment → Grinding → Automated Assembly. This allows us to maintain strict quality control at every stage.

2. High-Precision Standards

Leveraging advanced testing instruments, we produce bearings that reach precision grades of P5, P4, and even P2. Our materials consist of high-purity bearing steel subjected to specialized heat and cold treatment processes to maximize fatigue life.

3. Global OEM/ODM Expertise

With over 15 years of export experience, we understand the nuances of the global market. We offer:

  • Quick Response: Rapid quotes and technical consultations.
  • Customization: Tailored solutions for non-standard requirements based on customer drawings.
  • Proven Reliability: Proudly serving clients across Europe, Asia, Africa, and the Middle East with ISO9001 and ISO14001 certified processes.

4. Technical Support and Service

At UKL, we don’t just sell bearings; we provide solutions. Our team of over 200 skilled professionals offers technical assistance from the initial drawing confirmation to after-sales maintenance, ensuring your machinery operates at peak performance.

Selecting the Right Cross Roller Bearing

When sourcing from a bearing manufacturing company, consider these three critical factors:

  • Inner/Outer Ring Rotation: Determine if the inner ring, outer ring, or both will be rotating, as this dictates the model (e.g., RB, RE, or RU series).
  • Clearance and Preload: High-precision applications typically require a negative clearance (preload) to enhance rigidity.
  • Environment: For clean rooms or corrosive environments, special lubricants or stainless steel materials may be required.

Frequently Asked Questions (FAQ)

1. Which Cross Roller Bearing series should I choose: RB, RU, or CRBH?
It depends on your mounting needs. RB series is ideal for high inner-ring rotation accuracy. RU series features integrated rings with mounting holes for the easiest installation and smallest footprint. CRBH series offers high rigidity for both inner and outer ring rotation. At UKL, we provide technical drawings for all series to ensure the perfect fit for your design.

2. Can one Cross Roller Bearing replace multiple traditional bearings?
Yes. Due to the V-raceway design, a single Cross Roller Bearing handles radial, axial, and moment loads simultaneously. This allows you to replace a dual-bearing setup, reducing space, weight, and assembly costs while maintaining superior rigidity.

3. How does UKL guarantee P4 or P2 precision grades?
We control the entire process in-house at our Wuxi factory—from forging and specialized heat treatment to CNC precision grinding. Every bearing undergoes 100% inspection for noise, vibration, and clearance using advanced testing instruments, ensuring we meet the exceptionally high demands of global industries.

4. Do you offer customization for non-standard applications?
With 15 years of OEM/ODM experience, customization is our strength. Whether you need specific dimensions, stainless steel materials, or specialized lubricants for vacuum or high-temperature environments, UKL provides tailored R&D and manufacturing to meet your exact specifications.

5. What is the typical lead time for international orders?
Standard models are often in stock and ready to ship within 7-10 days. For customized or large-scale production, our integrated supply chain typically delivers within 30-45 days. We prioritize quick response times to support our clients across Europe, Asia, and the Middle East.
