3 Imthacaí Feistithe Flange Bolt

Is iad imthacaí gléasta flange 3-bolt na teaglaim de chásanna imthacaí flange 3-bolt agus imthacaí fáinne istigh níos leithne.
Is iad FB200 (dleacht chaighdeánach) agus FCT200 (dleacht éadrom trí iarann insínte) na clúdaigh imthacaí flange 3-bolt coitianta.
Tá clúdach deiridh le cruach brúite ann cosaint a dhéanamh ar thruailliú seachtrach agus cruthaitheach.
Is féidir le cumas féin-ailínithe na n-imthacaí cúiteamh a dhéanamh ar mhí-ailíniú beag statach an seafta. Tá na hionchuir imthacaí glasáilte ar an seafta le scriúnna socraithe agus coiléar glasála eccentric etc.
Is féidir le bealaí líonta taobh istigh den imthacaí buasféarúil a bheith ina ramhar caighdeánach, ramhar teocht íseal/airde agus ramhar grád bia.

Déan Teagmháil Linn

ROIMHE:Aonaid Imthacaí Cartús Flange AR Aghaidh:Aonaid Ioma Hanger

Sonraíochtaí
Déan Teagmháil Linn

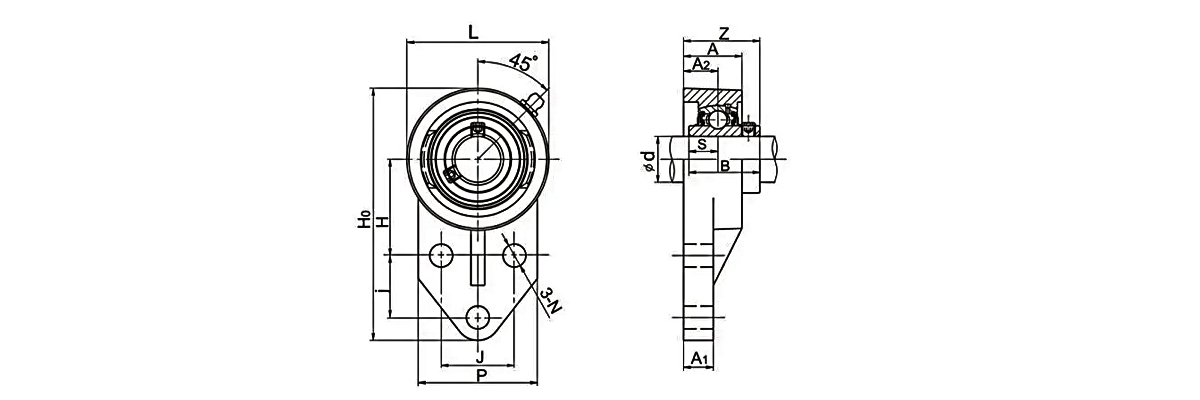

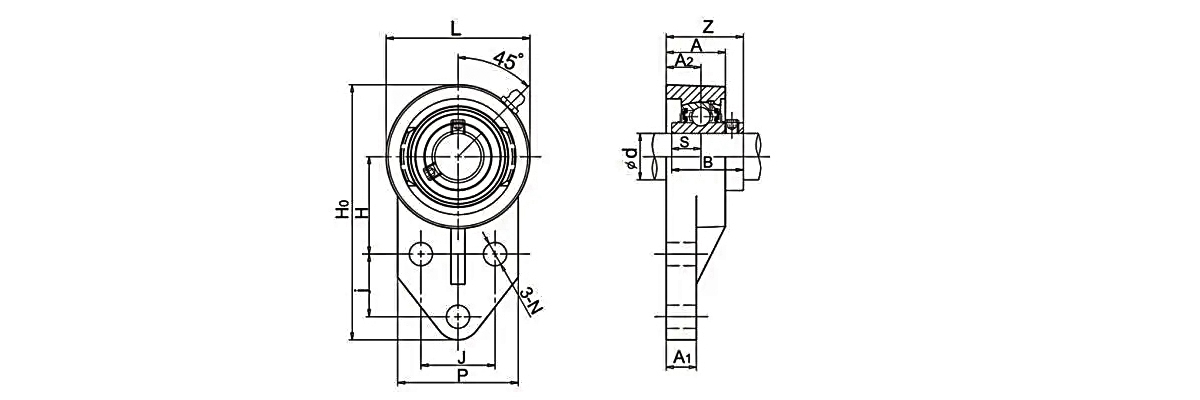

Aonad Uimh.	Seafta Dia		Toisi(mm)													Méid Bolt (muileann)	Meáchan (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(i)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201		12	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB201-8	1/2		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB202		15	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-9	9/16		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB202-10	5/8		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.58
UCFB203		17	110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB203-11	11/16		110	42	32	27	15	13	25.5	10	60	52	31	12.7	33.3	M8	0.57
UCFB204		20	110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB204-12	3/4		110	42	32	27	15	13	25.5	10	62	52	31	12.7	33.3	M8	0.62
UCFB205		25	116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-14	7/8		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-15	15/16		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB205-16	1/1		116	45	34	27	16	13	27	10	68	56	34.1	14.3	35.7	M8	0.69
UCFB206		30	130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-17	1/16		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-18	1/8		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-19	3/16		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB206-20	1/4		130	50	40	29	18	13	31	10	78	65	38.1	15.9	40.2	M8	0.93
UCFB207		35	144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-20	1/4		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-21	5/16		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-22	3/8		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB207-23	7/16		144	55	46	32	19	15	34	10	90	70	42.9	17.5	44.4	M8	1.3
UCFB208		40	164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-24	1/2		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB208-25	9/16		164	60	50	41	21	16	36	12	100	78	49.2	19	51.2	M10	1.8
UCFB209		45	174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-26	5/8		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-27	11/16		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB209-28	3/4		174	65	54	43	22	18	38	12	106	80	49.2	19	52.2	M10	2
UCFB210		50	184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-30	7/8		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-31	1-15/16		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3
UCFB210-32	1/2		184	68	58	46	22	18	40	12	112	86	51.6	19	54.6	M10	2.3

Aonad Uimh.	Seafta Dia		Toisi(mm)													Méid Bolt (muileann)	Meáchan (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
	(i)	(mm)	Ho	H	J	j	A2	A1	A	N	L	P	B	S	Z
UCFB201A		12	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB201-8A	1/2		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB202A		15	107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-9A	9/16		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB202-10A	5/8		107.95	42.86	38.1	22.22	15.88	7.94	25,4	9.92	63.5	60.33	31	12.7	34.18	MS	0.58
UCFB203A		17	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB203-11A	11/16		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.57
UCFB204A		20	107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB204-12A	3/4		107.95	42.86	38.1	22.22	15.88	7.94	25.4	9.92	63.5	60.33	31	12.7	34.18	M8	0.62
UCFB205A		25	120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-14A	7/8		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-15A	15/16		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB205-16A	1/1		120.65	46.04	41.27	28.58	17.07	9.53	28.57	9.92	69.85	63.5	34.1	14.3	36.87	M8	0.69
UCFB206A		30	136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-17A	1/16		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-18A	1/8		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-19A	3/16		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB206-20A	1/4		136.53	52.39	47.63	31.75	18.65	12.7	31.75	9.92	82.55	69.85	38.1	15.9	40.85	M8	0.93
UCFB207A		35	155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-20A	1/4		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-21A	5/16		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-22A	3/8		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB207-23A	7/16		155.58	60.33	50.8	31.75	21.03	12.7	36.51	13.1	95.25	82.55	42.9	17.5	46.43	M8	1.3
UCFB208A		40	164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-24A	1/2		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8
UCFB208-25A	9/16		164.31	60.33	50.01	41.27	21.03	15.88	35.72	11.91	100.01	77.79	49.2	19	51.23	M10	1.8

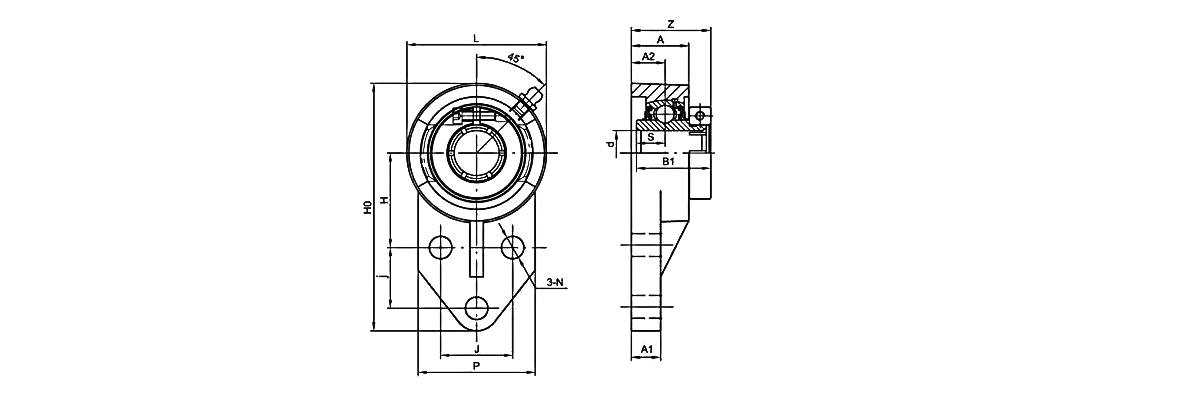

Aonad Uimh.	Seafta Dia		Toisi(mm)													Méid Bolt (mm)	Meáchan (kg)
	d		Ho	H	J	j	A2	A1	A	N	L	P	B1	S	Z
	(i)	(mm)
UEFB204		20	110	42	32	27	15	13	25.5	10	62	52	33	12.7	35.3	M8	0.692
UEFB204-12	3/4
UEFB205		25	116	45	34	27	16	13	27	10	68	56	35.4	14.3	37.1	M8	0.87
UEFB205-14	7/8
UEFB205-15	15/16
UEFB205-16	1/1
UEFB206		30	130	50	40	29	18	13	31	10	78	65	39.8	15.9	41.9	M8	1.13
UEFB206-17	1/16
UEFB206-18	1/8
UEFB206-19	3/16
UEFB206-20	1/4
UEFB207		35	144	55	46	32	19	15	34	10	90	70	43.9	17.5	45.4	M8	1.5
UEFB207-20	1/4
UEFB207-21	5/16
UEFB207-22	3/8
UEFB207-23	7/16
UEFB208		40	164	60	50	41	21	16	36	12	100	78	50.2	19	52.2	M10	2.07
UEFB208-24	1/2
UEFB208-25	9/16
UEFB209		45	174	65	54	43	22	18	38	12	106	80	50.2	19	53.2	M10	2.43
UEFB209-26	5/8
UEFB209-27	11/16
UEFB209-28	3/4
UEFB210		50	184	68	58	46	22	18	40	12	112	86	52.6	19	55.6	M10	2.8
UEFB210-30	7/8
UEFB210-31	1-15/16
UEFB210-32	1/2

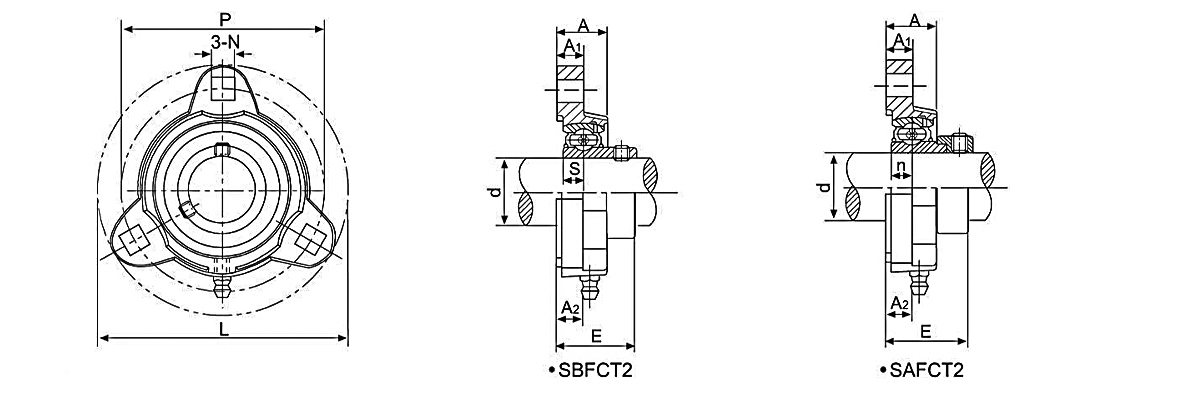

Aonad Uimh.	Seafta Dia		Toisi (mm)								Méid Bolt		Bearradh NÍL.	Tithíocht UIMH.	Meáchan (kg)
	d		L	P	A1	A	A2	N	s	E	Méid Bolt
	(i)	(mm)	L	P	A1	A	A2	N	s	E	(mm)	(i)
SBFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201	FCT203	0.21
SBFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB201-8	FCT203	0.21
SBFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202	FCT203	0.21
SBFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB202-10	FCT203	0.21
SBFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203	FCT203	0.21
SBFCT203-11	11/16		81	63.5	10.7	19.1	10.7	7.1	6	26.7	M6	1/4	SB203-11	FCT203	0.21
SBFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	5/16	SB204-12	FCT204	0.32
SBFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7	29.1	M8	5/16	SB204	FCT204	0.32
SBFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	5/16	SB205-14	FCT205	0.36
SBFCT205-15	15/16		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	5/16	SB205-15	FCT205	0.36
SBFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	5/16	SB205	FCT205	0.36
SBFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	29.8	M8	5/16	SB205-16	FCT205	0.36
SBFCT206-18	1/8		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-18	FCT206	0.57
SBFCT206		30	113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206	FCT206	0.57
SBFCT206-19	3/16		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB2206-19	FCT206	0.57
SBFCT206-20	1/4		113	90.5	12	22	12	10.3	8	34	M10	3/8	SB206-20	FCT206	0.57
SBFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-20	FCT207	0.71
SBFCT207-21	5/16		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-21	FCT207	0.71
SBFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-22	FCT207	0.71
SBFCT207		35	122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB2207	FCT207	0.71
SBFCT207-23	7/16		122.5	100	12.7	23.8	12.7	10.3	8.5	36.2	M10	3/8	SB207-23	FCT207	0.71

Aonad Uimh.	Seafta Dia		Toisi (mm)								Méid Bolt		Bearradh NÍL.	Tithíocht UIMH.	Meáchan (kg)
	d		L	P	A1	A	A2	s	n	E	Méid Bolt
	(i)	(mm)	L	P	A1	A	A2	s	n	E	(mm)	(i)
SAFCT201		12	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201	FCT203	0.26
SAFCT201-8	1/2		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA201-8	FCT203	0.26
SAFCT202		15	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202	FCT203	0.26
SAFCT202-10	5/8		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA202-10	FCT203	0.26
SAFCT203		17	81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203	FCT203	0.26
SAFCT203-11	11/16		81	63.5	10.7	19.1	10.7	7.1	6.5	32.8	IV16	1/4	SA203-11	FCT203	0.26
SAFCT204-12	3/4		90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	5/16	SA204-12	FCT204	0.34
SAFCT204		20	90.5	71.4	11.1	19.8	11.1	8.7	7.5	34.5	M8	5/16	SA204	FCT204	0.34
SAFCT205-14	7/8		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	5/16	SA205-14	FCT205	0.39
SAFCT205-15	15/16		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	5/16	SA205-15	FCT205	0.39
SAFCT205		25	95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	5/16	SA205	FCT205	0.39
SAFCT205-16	1/1		95.2	76.2	10.3	19.8	10.3	8.7	7.5	33.7	M8	5/16	SA205-16	FCT205	0.39
SAFCT206-18	1/8		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-18	FCT206	0.61
SAFCT206		30	113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206	FCT206	0.61
SAFCT206-19	3/16		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-19	FCT206	0.61
SAFCT206-20	1/4		113	90.5	12	22	12	10.3	9	38.7	M10	3/8	SA206-20	FCT206	0.61
SAFCT207-20	1/4		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-20	FCT207	0.82
SAFCT207-21	5/16		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-21	FCT207	0.82
SAFCT207-22	3/8		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-22	FCT207	0.82
SAFCT207		35	122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207	FCT207	0.82
SAFCT207-23	7/16		122.5	100	12.7	23.8	12.7	10.3	9.5	42.1	M10	3/8	SA207-23	FCT207	0.82
