3200 A-2ZTN9/MT33 Imthacaí Liathróid Teagmhála Uillinneacha Sraithe Dúbailte

Imthacaí Liathróid Teagmhála Uillinneacha Sraithe Dúbailte (DRACBB)Tá dearadh an Imthacaí Liathróid Teagmhála Uathoibríoch Sraithe Dúbailte (DRACBB) go bunúsach mar an gcéanna le dhá imthacaí liathróid teagmhála uilleacha as a chéile, ach tá i bhfad níos lú spáis aiseach aige. Is féidir leis an DRACBB freastal ar ualaí gathacha agus ualaí aiseach ag gníomhú sa dá threo. Tá sé in ann srian a chur le dí-áitiú aiseach déthreo na seafta nó na tithíochta. Le gnáth-uillinn teagmhála 30°, cuireann sé socrú imthacaí an-docht ar fáil agus féadann sé seasamh in aghaidh chuimhneacháin chealaithe.

Déan Teagmháil Linn

RÉAMHV：No previous product Ar Aghaidh：7200 BECBP Imthacaí Liathróid Teagmhála Uillinn

Cur síos
Sonraíochtaí
Déan Teagmháil Linn

Tréithe Bearing
· Spás Dlúth Aiseach: Éilíonn spás aiseach íosta.
· Réiteach Spáis: Oiriúnach d'iarratais ina bhfuil srian ar an spás aiseach, is minic a chuirtear in ionad imthacaí liathróid teagmhála uillinneacha dhá shraith singil atá suite i socrú cúl le cúl.
· Cumas Luchtaithe Comhcheangailte: Freastalaíonn sé ar ualaí gathacha agus ualaí aiseach sa dá threo.
· Cumas Luchtaithe Nóiméad: Is féidir leis chuimhneacháin chealaithe a sheasamh.
· Socrú Imthacaí Dlúth: Soláthraíonn stiffness córas ard.

Buntáistí Buntábhachtacha
· Ard-Rigidity agus Acmhainn Ualach: Tairiscintí rigidity i bhfad níos airde i gcomparáid le sraith amháin imthacaí liathróid teagmhála uilleach.
· Cumas Luchtaithe Trí-Thrí: Tá ar a gcumas freastal ag an am céanna ar ualaí gathacha, ar ualaí aiseach déthreocha, agus ar chuimhneacháin chealaithe.
· Ideal do Ard-stiffness: An-oiriúnach d'iarratais a éilíonn ard-rigidity.

Réimsí Iarratais (Feidhmchláir)
· Úsáidtear go forleathan i moil roth tosaigh na ngluaisteán.
· Caidéil ola, séidirí Roots, comhbhrúiteoirí aeir.
· Cineálacha éagsúla tarchuir / giarbhoscaí.
· Fearsaidí uirlisí meaisín.

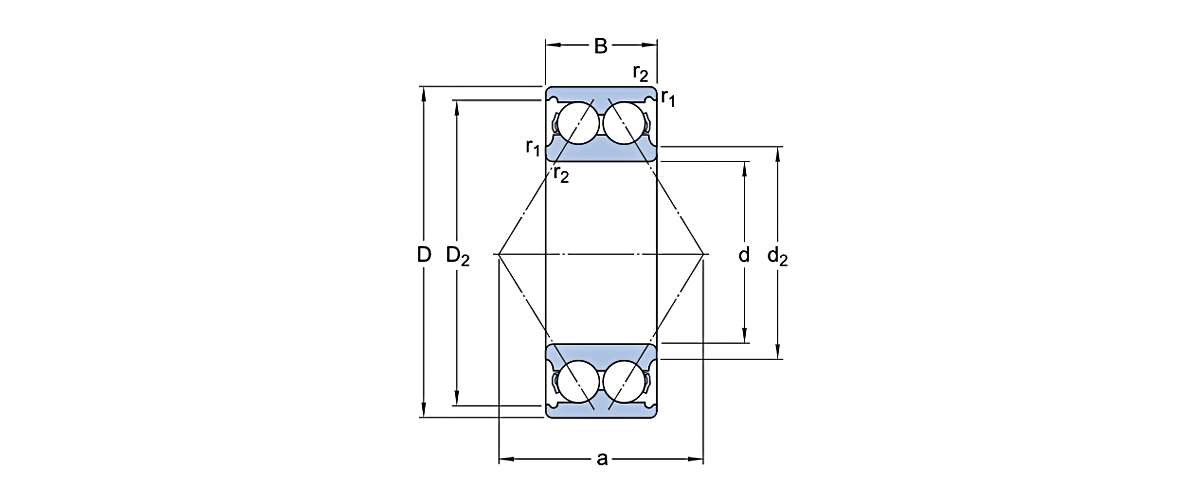

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
10	30	14	6.849	3.87	23400	21600	0.051	Imthacaí 3200 A-2ZTN9/MT33
10	30	14	6.849	3.87	23400	21600	0.051	Imthacaí 3200 ATN9
10	30	14	6.849	3.87		15300	0.051	Imthacaí 3200 A-2RS1TN9/MT33
12	32	15.9	9.09	5.04	21600	19800	0.058	Imthacaí 3201 A-2ZTN9/MT33
12	32	15.9	9.09	5.04	21600	19800	0.058	3201 ATN9 Bearing
12	32	15.9	9.09	5.04		13500	0.058	3201 A-2RS1TN9/MT33 Imthacaí
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 A-2ZTN9/MT33 Imthacaí
15	35	15.9	10.08	6.12	19800	16200	0.066	3202 ATN9 Bearing
15	35	15.9	10.08	6.12		12600	0.066	3202 A-2RS1TN9/MT33 Imthacaí
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2Z Bearing
15	42	19	13.59	8.37	16200	14400	0.13	3302 A-2ZTN9/MT33 Imthacaí
15	42	19	13.59	8.37	16200	14400	0.13	3302 ATN9 Bearing
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1 Bearing
15	42	19	13.59	8.37		10800	0.13	3302 A-2RS1TN9/MT33 Imthacaí
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 A-2ZTN9/MT33 Imthacaí
17	40	17.5	12.87	7.92	17100	14400	0.096	3203 ATN9 Bearing
17	40	17.5	12.87	7.92		10800	0.096	3203 A-2RS1TN9/MT33 Imthacaí
17	47	22.2	19.44	11.43	15300	12600	0.18	Imthacaí 3303 A-2Z
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 A-2ZTN9/MT33 Imthacaí
17	47	22.2	19.44	11.43	15300	12600	0.18	3303 ATN9 Bearing
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1 Bearing
17	47	22.2	19.44	11.43		9900	0.18	3303 A-2RS1TN9/MT33 Imthacaí
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A Bearradh
20	47	20.6	18.36	11.61	14400	12600	0.16	Imthacaí 3204 A-2Z
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 A-2ZTN9/MT33 Imthacaí
20	47	20.6	18.36	11.61	14400	12600	0.16	3204 ATN9 Bearing
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1 Bearing
20	47	20.6	18.36	11.61		9000	0.16	3204 A-2RS1TN9/MT33 Imthacaí
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A Bearradh
20	52	22.2	22.05	14.04	11700	11700	0.22	Imthacaí 3304 A-2Z

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 A-2ZTN9/MT33 Imthacaí
20	52	22.2	22.05	14.04	11700	11700	0.22	3304 ATN9 Bearing
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1 Bearing
20	52	22.2	22.05	14.04		8100	0.22	3304 A-2RS1TN9/MT33 Imthacaí
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A Bearradh
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2Z Bearing
25	52	20.6	19.8	13.77	10800	10800	0.18	3205 A-2ZTN9/MT33 Imthacaí
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1 Bearing
25	52	20.6	19.8	13.77		7650	0.18	3205 A-2RS1TN9/MT33 Imthacaí
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A Bearradh
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2Z Bearing
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 A-2ZTN9/MT33 Imthacaí
25	62	25.4	29.25	19.8	9900	9900	0.35	3305 ATN9 Bearing
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1 Bearing
25	62	25.4	29.25	19.8		6750	0.35	3305 A-2RS1TN9/MT33 Imthacaí
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A Bearradh
30	62	23.8	27.45	19.8	9000	9000	0.29	Imthacaí 3206 A-2Z
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 A-2ZTN9/MT33 Imthacaí
30	62	23.8	27.45	19.8	9000	9000	0.29	3206 ATN9 Bearing
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1 Bearing
30	62	23.8	27.45	19.8		6750	0.29	3206 A-2RS1TN9/MT33 Imthacaí
30	72	30.2	38.25	27	9000	8100	0.52	3306 A Bearradh
30	72	30.2	38.25	27	9000	8100	0.52	Imthacaí 3306 A-2Z
30	72	30.2	38.25	27	9000	8100	0.52	3306 A-2ZTN9/MT33 Imthacaí
30	72	30.2	38.25	27	9000	8100	0.52	3306 ATN9 Bearing
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1 Bearing
30	72	30.2	38.25	27		5670	0.52	3306 A-2RS1TN9/MT33 Imthacaí
35	72	27	36.45	27	8100	8100	0.44	3207 A Bearradh
35	72	27	36.45	27	8100	8100	0.44	Imthacaí 3207 A-2Z
35	72	27	36.45	27	8100	8100	0.44	3207 A-2ZTN9/MT33 Imthacaí

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
35	72	27	36.45	27	8100	8100	0.44	3207 ATN9 Bearing
35	72	27	36.45	27		5670	0.44	3207 A-2RS1 Bearing
35	72	27	36.45	27		5670	0.44	3207 A-2RS1TN9/MT33 Imthacaí
35	80	34.9	47.43	37.35	8100	7200	0.74	3307 DJ1 Bearing
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A Bearradh
35	80	34.9	48.6	34.2	7650	7650	0.74	Imthacaí 3307 A-2Z
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 A-2ZTN9/MT33 Imthacaí
35	80	34.9	48.6	34.2	7650	7650	0.74	3307 ATN9 Bearing
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1 Bearing
35	80	34.9	48.6	34.2		5400	0.74	3307 A-2RS1TN9/MT33 Imthacaí
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A Bearradh
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2Z Bearing
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 A-2ZTN9/MT33 Imthacaí
40	80	30.2	43.2	32.85	8100	7200	0.57	3208 ATN9 Bearing
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1 Bearing
40	80	30.2	43.2	32.85		5040	0.57	3208 A-2RS1TN9/MT33 Imthacaí
40	90	36.5	44.46	37.35	7200	6300	0.93	Imthacaí 3308 DNRCBM
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A Bearradh
40	90	36.5	58.95	43.2	6750	6750	0.93	Imthacaí 3308 A-2Z
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 A-2ZTN9/MT33 Imthacaí
40	90	36.5	58.95	43.2	6750	6750	0.93	3308 ATN9 Bearing
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1 Bearing
40	90	36.5	58.95	43.2		4500	0.93	3308 A-2RS1TN9/MT33 Imthacaí
40	90	36.5	62.01	51.3	7200	6300	0.93	Imthacaí 3308 DMA
40	90	36.5	62.01	51.3	7200	6300	0.93	Imthacaí 3308 DTN9
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A Bearradh
45	85	30.2	46.8	37.35	6750	6750	0.63	Imthacaí 3209 A-2Z
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 A-2ZTN9/MT33 Imthacaí
45	85	30.2	46.8	37.35	6750	6750	0.63	3209 ATN9 Bearing
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1 Bearing

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
45	85	30.2	46.8	37.35		4770	0.63	3209 A-2RS1TN9/MT33 Imthacaí
45	100	39.7	55.62	46.8	6750	5670	1.25	3309 DNRCBM Bearing
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 A Bearradh
45	100	39.7	67.5	47.7	6750	6030	1.25	Imthacaí 3309 A-2Z
45	100	39.7	67.5	47.7	6750	6030	1.25	3309 ATN9 Bearing
45	100	39.7	67.5	47.7		4320	1.25	3309 A-2RS1 Bearing
45	100	39.7	71.37	62.55	6750	5670	1.25	Imthacaí 3309 DMA
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A Bearradh
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2Z Bearing
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 A-2ZTN9/MT33 Imthacaí
50	90	30.2	45.9	38.25	7200	6300	0.65	3210 ATN9 Bearing
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1 Bearing
50	90	30.2	45.9	38.25		4320	0.65	3210 A-2RS1TN9/MT33 Imthacaí
50	110	44.4	73.71	62.55	6030	5040	1.95	3310 DNRCBM Bearing
50	110	44.4	84.24	76.5	6030	5040	1.95	3310 DMA Imthacaí
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A Bearradh
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 A-2Z Bearing
50	110	44.4	85.5	62.55	5400	5400	1.95	3310 ATN9 Bearing
50	110	44.4	85.5	62.55		3870	1.95	3310 A-2RS1 Bearing
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 A Bearradh
55	100	33.3	54.9	46.8	5670	5670	0.91	Imthacaí 3211 A-2Z
55	100	33.3	54.9	46.8	5670	5670	0.91	3211 ATN9 Bearing
55	100	33.3	54.9	46.8		4050	0.91	3211 A-2RS1 Bearing
55	120	49.2	86.04	74.7	5400	4770	2.65	Imthacaí 3311 DNRCBM
55	120	49.2	99.9	90	5400	4500	2.65	Imthacaí 3311 DMA
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 A Bearradh
55	120	49.2	100.8	73.35	5400	4770	2.65	Imthacaí 3311 A-2Z
55	120	49.2	100.8	73.35	5400	4770	2.65	3311 ATN9 Bearing
55	120	49.2	100.8	73.35		3420	2.65	3311 A-2RS1 Bearing
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 A Bearradh

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
60	110	36.5	67.5	57.6	5040	5040	1.2	Imthacaí 3212 A-2Z
60	110	36.5	67.5	57.6	5040	5040	1.2	3212 ATN9 Bearing
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1 Bearing
60	110	36.5	67.5	57.6		3600	1.2	3212 A-2RS1TN9/MT33 Imthacaí
60	130	54	114.3	85.5	5040	4500	2.8	3312 A Bearradh
60	130	54	114.3	85.5	5040	4500	2.8	Imthacaí 3312 A-2Z
65	120	38.1	72.54	66.15	5040	4320	1.75	3213 A Bearradh
65	120	38.1	72.54	66.15	5040	4320	1.75	Imthacaí 3213 A-2Z
65	120	38.1	72.54	66.15		3240	1.75	3213 A-2RS1 Bearing
65	140	58.7	124.2	109.8	4770	4050	4.1	Imthacaí 3313 DNRCBM
65	140	58.7	131.4	99	4770	4050	4.1	3313 A Bearradh
65	140	58.7	131.4	99	4770	4050	4.1	3313 A-2Z Imthacaí
70	125	39.7	79.56	72	5040	4050	1.9	3214 A Bearradh
70	125	39.7	79.56	72	5040	4050	1.9	Imthacaí 3214 A-2Z
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A Bearradh
70	150	63.5	146.7	112.5	4500	3870	5.05	3314 A-2Z Imthacaí
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A Bearradh
75	130	41.3	86.04	79.2	4770	4050	2.1	3215 A-2Z Bearing
75	160	68.3	158.4	126	4050	3600	5.6	3315 A Bearradh
75	160	68.3	158.4	126	4050	3600	5.6	3315 A-2Z Bearing
80	140	44.4	95.4	85.5	4500	3870	2.65	3216 A Bearradh
80	170	68.3	173.7	140.4	3870	3420	6.8	3316 A Bearradh
85	150	49.2	111.6	99	4050	3420	3.4	3217 A Bearradh
85	180	73	187.2	158.4	3600	3240	8.3	3317 A Bearradh
90	160	52.4	117	108	3870	3240	4.15	3218 A Bearradh
90	190	73	187.2	162	3420	3060	9.25	3318 A Bearradh
95	170	55.6	143.1	131.4	3600	3060	5	3219 A Bearradh
95	200	77.8	216	194.4	3240	2880	11	3319 A Bearradh
100	180	60.3	160.2	149.4	3420	2880	6.1	3220 A Bearradh
100	215	82.6	229.5	229.5	3060	2520	13.5	3320 A Bearradh

Toisí bunúsacha			Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha			dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
110	200	69.8	190.8	190.8	3060	2520	8.8	3222 A Bearradh
110	240	92.1	261.9	274.5	2700	2340	19	3322 A Bearradh
120	190	66	163.8	208.8	3060	3240	7.08	305256 D Bearing
150	225	73	163.8	238.5	1530	1800	5.52	305286 D Bearing
150	230	70	182.7	256.5	2520	2700	10.6	305283 D Bearing
150	230	70	182.7	256.5	2520	2700	10.6	305283 DA Bearing
160	215	56	121.5	198	2520	2700	5.67	305608 Bearing
160	215	56	121.5	198	2520	2700	5.45	305608 B Bearradh
160	240	76	210.6	301.5	2340	2520	11.4	305183 Bearradh
170	260	84	252.9	364.5	2160	2340	16.8	305180 Bearing
180	250	70	171	256.5	2160	2340	9.67	305288 DA Bearing
180	259.5	66	202.5	279	2160	2340	11	305262 D Bearing
190	269.5	66	243	373.5	1980	2160	11	305338 D Bearing
200	279.5	76	217.8	342	1710	2160	13.7	305428 D Bearing
200	280	80	217.8	342	1980	2160	15.9	305393 Bearing
200	289.5	76	271.8	427.5	1620	1980	16.4	305263 D Bearing
200	289.5	76	271.8	427.5	1620	1980	16.4	305263 DA Bearing
220	309.5	76	280.8	468	1800	1800	17.7	305272 D Bearing
220	309.5	76	280.8	468	1800	1800	17.7	305272 DA Bearing
220	309.5	76	280.8	468	1800	1800	17.7	305272 DB Imthacaí
230	329.5	80	315.9	540	1710	1800	21.9	305264 D Bearing
260	369.5	92	357.3	639	1530	1530	30	305270 D Bearing
280	389.5	92	362.7	675	1440	1440	33.2	305269 D Bearing

Innealtóireacht Todhchaí na Gluaisne

Maidir le UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China 3200 A-2ZTN9/MT33 Imthacaí Liathróid Teagmhála Uillinneacha Sraithe Dúbailte suppliers and OEM/ODM 3200 A-2ZTN9/MT33 Imthacaí Liathróid Teagmhála Uillinneacha Sraithe Dúbailte company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Tuilleadh Fúinn Ukl Bearing Manufacturing Co.,Ltd

0+

blianta

Taithí Tionscail
0+

Éagsúlacht múnla
0+

Líon Fostaithe
0

$

Luach onnmhairithe bliantúil

Deimhniú Onóra

Nuacht

Cén fáth go bhfuil Bearing Roller Sorcóireach NU 309 Excels i Dearthaí Mótair agus Giarbhosca?
04 Jun, 2026
Eochair Beir leat: Tá Bearing NU 309 ar fheabhas mar Imthacaí Snámh Maidir le dearaí mótair agus giarbhosca nuair is ábhar imní ríthábhachtach é leathnú teirmeach an tseafta, is é an ...

LÉIGH TUILLEADH
Conas Fáinne Nilos 2206 AV a shuiteáil (Treoir Céim ar Chéim)
28 May, 2026
Suiteáil leis an taobh oscailte os comhair an imthacaí Chun a shuiteáil i gceart an 2206 AV Fáinne Nilos, cuir é sa chaoi is go díríonn an taobh dronnach (oscailte) i dt...

LÉIGH TUILLEADH
Conas an Bearing Liathróid Teagmhála Ceart Uillinn a Roghnú le haghaidh Feidhmchláir Ardluais?
21 May, 2026
Chun an chomhpháirt rollta is fearr a roghnú le haghaidh innealra rothlach ardluais, tá gá le tuiscint dhomhain ar choinníollacha oibriúcháin, céimseata inmheánach, agus bainistíocht theirmeach. I ...

LÉIGH TUILLEADH
Beachtas Faoi Bhrú: Príomhfhachtóirí Tiomána Trealamh Liachta Roghnú Bearings
14 May, 2026
I réimse na teicneolaíochta leighis atá ag forbairt go tapa, is féidir fiú an chomhpháirt is lú a chinneadh cé chomh rathúil is atá feiste tarrthála. Ina measc seo, imthacaí trealamh leighi...

LÉIGH TUILLEADH
