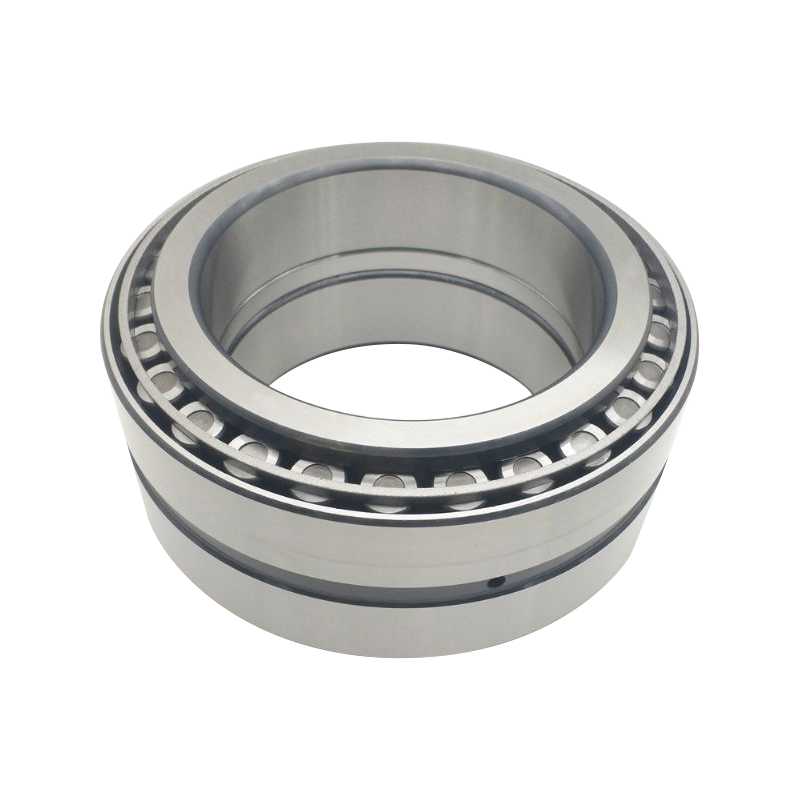

BT2B 332504/HA2 - Imthacaí sorcóir barrchaolaithe Sraith Dúbailte

Is cineál speisialaithe imthacaí iad imthacaí sorcóir barrchaolaithe sraith dhúbailte a ndéantar innealtóireacht orthu chun ualaí troma gathacha agus déthreoracha a sheasamh ag an am céanna. Soláthraíonn siad réiteach ard-rigidity agus cumas mór d'fheidhmchláir cosúil le giarbhoscaí, muilte rollta, agus meaisíní leadránach tolláin. I gcomparáid le imthacaí sraith aonair, cuireann siad stiffness níos fearr, saol seirbhíse níos faide, agus cuimilte níos ísle.

Déan Teagmháil Linn

RÉAMHV：No previous product Ar Aghaidh：30202 Imthacaí sorcóir barrchaolaithe Sraith Aonair

Cur síos
Sonraíochtaí
Déan Teagmháil Linn

Príomhghnéithe agus Buntáistí
· Cumas Iompraíochta Ualach Trom: Deartha chun tacú le hualaí aiseach ard gathacha agus déthreo.
·Ard-Rochtaineacht (Docht): Soláthraíonn socrú imthacaí docht, atá tairbheach d'iarratais bheachtais.
·Suíomh/Suíomh Aiseach: Aimsítear an seafta go haiseach sa dá threo laistigh d'imréiteach aiseach socraithe nó faoi réamhualach.
· Saol Seirbhíse Fada: Úsáideann sé próifílí rásbhealaigh optamaithe chun dáileadh ualaigh a fheabhsú, strus a laghdú, agus friotaíocht caitheamh a fheabhsú.
· Frithchuimilt agus Torann Laghdaithe: Éascaíonn dearadh deireadh sorcóir optamaithe agus bailchríocha dromchla foirmiú scannán bealaithe, rud a laghdaíonn frithchuimilt agus is féidir leis torann agus creathadh a laghdú.
·Iontaofacht: Méadaítear iontaofacht oibriúcháin fiú faoi choinníollacha deacra agus cuireann sé íogaireacht níos airde ar mhí-ailíniú.

Réimsí Iarratais (Feidhmchláir)
·Sa tionscal mianadóireachta, úsáidtear iad le haghaidh ardaitheoirí agus trealamh tochailte tolláin.
·Tá éileamh mór ar imthacaí sorcóir barrchaolaithe sraithe dúbailte freisin.

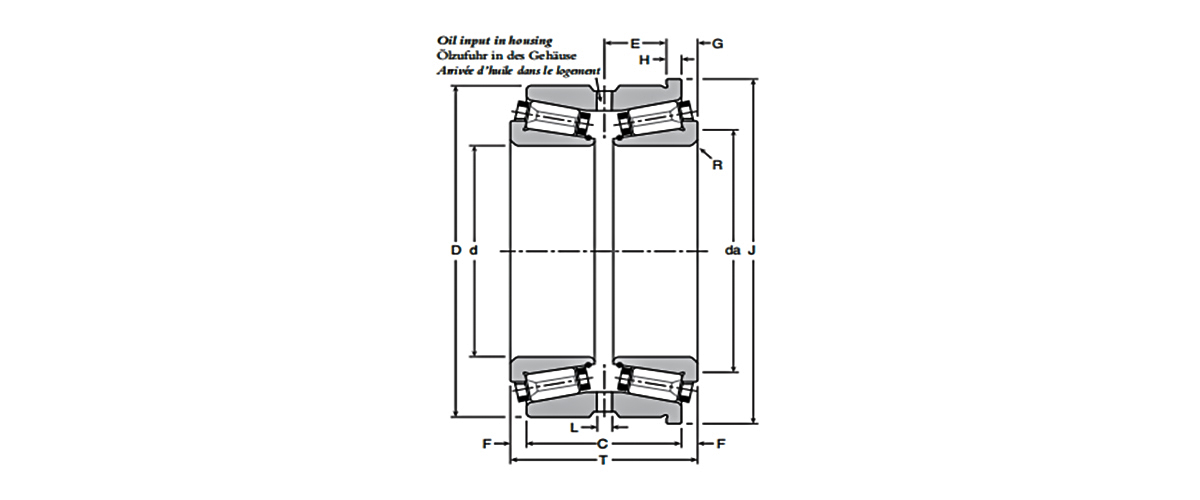

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					Dinimiciúla	Statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Bearradh
260	480		220	284	3897	6615			210	Imthacaí BT2B 328130
260.35	422.275		139.7	178.592	2016	3645			86.5	Imthacaí BT2B 328187/HA2
300.038	422.275		136.525	174.625	1959.3	4275			71.5	Imthacaí BT2B 332504/HA2
317.5	447.675		146.05	180.975	2268.9	4860			84	Imthacaí BT2B 332516 A/HA1
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Bearradh
340	460		128	160	1976.4	4410			71	Imthacaí BT2B 332830
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Bearradh
355.6	501.65		107.95	155.575	1778.4	3825			87	Imthacaí BT2B 332506/HA2
360	480		128	160	1989.9	4500			73	Imthacaí BT2B 332831
368.249	523.875		169.862	214.312	3042	6750			140	Imthacaí BT2B 332603/HA1
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Bearradh
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Bearradh
400	540		135	170	2503.8	5670			106	Imthacaí BT2-8143/HA1
406.4	539.75		101.6	142.875	1635.3	3960			82.4	Imthacaí BT2B 328389
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Bearradh
431.8	571.5		146.05	192.088	2562.3	6255			127	Imthacaí BT2B 332237 A/HA1
431.8	571.5		111.125	155.575	1030.5	4590			100	Imthacaí BT2B 332604/HA1
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Bearing
479.425	679.45		222.25	276.225	4509	11430			302	331657 Bearradh
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Bearing
501.65	711.2		231.775	292.1	4950	12330			343	Imthacaí BT2B 332605 A/HA1
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Bearing
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Bearradh
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Bearing
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Bearradh
609.6	820		158.75	206.375	3618	9540			292	331500 Beartáin
711.2	914.4		139.7	190.5	3420	8685			265	Imthacaí BT2B 328028/HA1
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Bearradh
723.9	914.4		139.7	187.325	3420	8685			250	Imthacaí BT2B 331554 B/HA1

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
762	965.2		133.35	187.325	3222	8820			290	331780 A Bearradh
774.962	1016		209.63	266.7	6477.3	16200			525	Imthacaí BT2B 332625
914.4	1066.8		101.6	139.7	2340	7200			190	Imthacaí BT2B 332501/HA5
1160	1540		290	400	12780	34200			1900	Imthacaí BT2B 332780/HA5
1250	1500		190	250	6633	20160			795	Imthacaí BT2B 328339/HA4
240	480	200		220	3253.5	4950			183	BT2B 332931 Bearing
300	440	105		105	968.4	1836			48.5	332168 Bearradh
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Bearradh
303.212	495.3	263.525		263.525	4427.1	8820			212	Imthacaí BT2B 332685/HA1
305.033	560	200		200	1509.3	4770			200	332068 Bearradh
305.033	560	200		199.263	1509.3	4770			205	Imthacaí BT2B 334087/HA3
305.07	500	200		200	2460.6	4680			150	332169 A Bearradh
305.07	500	200		200	2460.6	4680			150	332169 AA Bearing
305.07	524	200		200	2460.6	4680			180	Imthacaí BT2B 334110/HA3
317.5	422.275	128.588		128.588	1606.5	3735			51.5	Imthacaí BT2B 328699 G/HA1
320	515	160		160	2142.9	3960			160	Imthacaí BT2-8017/HA3
333.375	469.9	166.688		166.688	2377.8	5130			92.5	Imthacaí BT2B 328695 A/HA1
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Bearradh
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Bearing
346.075	488.95	174.625		174.625	2551.5	5670			113	Imthacaí BT2B 328410 C/HA1
346.075	488.95	95.25		104.775	607.5	2475			62	Imthacaí BT2B 332913/HB1
360	560	160		160	2300.4	4185			140	Imthacaí BT2-8000/HA3
380	560	200		200	2691.9	5895			165	Imthacaí BT2-8009/HA3
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Bearradh
384.175	546.1	193.675		193.675	3351.6	7470			166	Imthacaí BT2B 328580/HA1
384.175	546.1	193.675		193.675	3351.6	7470			152	Imthacaí BT2B 331837
385.762	514.35	152.4		152.4	2061	5400			92	Imthacaí BT2B 328035/HA1
386	574	220		220	2670.3	5895			185	Imthacaí BT2-8010/HA3VA901
390	546.1	141.288		141.288	2105.1	4590			102	Imthacaí BT2B 328705/HA1
390	570	200		200	2670.3	5895			170	Imthacaí BT2B 328896/HA3

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
390	590	200		200	2670.3	5895			200	Imthacaí BT2B 328934/HA3
390	548	180		180	2295	5265			155	Imthacaí BT2B 334045/HA3
400	650	240		240	3519	7335			290	332167 Bearradh
400	650	240		240	3519	7335			305	Imthacaí BT2B 332167 C/HA3
406.4	546.1	138.113		138.113	2105.1	4590			89	Imthacaí BT2B 331840 C/HA1
406.4	546.1	138.113		138.113	1980	4590			89	Imthacaí BT2B 331840 G/HA1C150
406.4	546.1	164.275		164.275	1775.7	3825			135	Imthacaí BT2B 334085 A/HA1VA928
406.4	546.1	164.275		164.275	1775.7	3825			135	Imthacaí BT2B 334085/HA1VA901
408.4	546.1	125		150	1766.7	4275			99	Imthacaí BT2B 328466/HA1
408.4	546.1	98		120	1442.7	3105			76.5	Imthacaí BT2B 328874/HA1
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Bearradh
415.925	590.55	209.55		209.55	3757.5	8685			192	Imthacaí BT2B 328283/HA1
420	620	200		200	2673	6480			210	Imthacaí BT2-8016/HA3
430	535	84		84	972	2700			44.5	Imthacaí BT2B 334013/HA1
445	620	160		160	1908	4590			135	Imthacaí BT2B 334069/HA3
445	620	180		180	1908	4590			160	Imthacaí BT2B 334113/HA3VA901
447.675	635	223.838		223.838	3960	9900			236	331562 Bearradh
447.675	635	223.838		223.838	3960	9900			246	Imthacaí BT2B 332911 B/HB1
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Imthacaí
450	595	178		178	2852.1	7335			140	Imthacaí BT2B 328523/HA1
460	680	180		180	2826	6255			210	Imthacaí BT2B 328876/HA1
460	680	180		180	2826	6255			250	Imthacaí BT2B 334030/HA1
464	615	136		150	1944	5265			133	BT2-8215 Bearing
482	640	160		160	1584	4680			145	Imthacaí BT2B 334112/HA3
482.6	733.425	190		190	2574	7470			293	Imthacaí BT2-8142/HA3
489.026	634.873	152.4		152.4	2475	6615			130	Imthacaí BT2B 331848
500	730	280		280	5940	14040			420	331676 A Bearradh
501.65	711.2	250.825		250.825	4950	12330			330	331182 Bearradh
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Bearradh
519.113	736.6	258.762		258.762	5445	14040			370	Imthacaí BT2B 332662 B/HB1

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
519.113	736.6	258.762		258.762	5445	14040			370	Imthacaí BT2B 332662/HB1
536.575	761.873	269.875		269.875	5643	14400			410	331682 Bearradh
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Bearradh
560	820	242		242	4509	10260			425	Imthacaí BT2B 332626/HA7
571.5	812.8	285.75		285.75	6489	16200			500	Imthacaí BT2B 331476 AG/HA1
571.5	812.8	285.75		285.75	6489	16200			500	Imthacaí BT2B 331854 C/HA1
571.5	812.8	285.75		285.75	6489	16200			500	Imthacaí BT2B 331854/HA1
580	830	280		280	6138	14940			515	331677 Bearing
609.6	787.4	171.45		171.45	3618	9540			218	Imthacaí BT2B 331858/HA1
609.6	820	171.45		171.45	3618	9540			265	Imthacaí BT2B 332424/HA3
635	939.8	304.8		304.8	6039	14940			720	331555 B Bearing
650	1030	270		270	7920	16470			900	Imthacaí BT2B 328306/HA4
660.4	812.8	176.212		176.212	3222	10080			195	331198 Bearradh
690	980	355		355	9204.3	22500			890	Imthacaí BT2-8164/HA4
800	1260	375		375	13230	30150			1850	Imthacaí BT2B 334032/HA4
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Bearing
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Bearing
110	180		76	95	400	730			8.63	352122 Bearradh
120	200		90	110	508	910			11.7	352124 Bearradh
130	200		80	102	450	800			9.72	352026 Bearradh
130	210		90	110	540	1000			13.5	352126 Bearradh
140	210		82	104	480	830			10.9	352028 Beartáin
140	225		90	115	560	1100			15.5	352128 Bearradh
150	225		86	110	500	900			14.5	352030 Beartán
150	250		112	138	778	1560			25.8	352130 Bearing
160	240		90	116	700	1300			16.5	352032 Bearradh
160	270		120	150	990	2160			34.9	352132 Bearradh
170	260		100	128	830	1800			21	352034 Bearradh
170	280		120	150	1100	2400			35.6	352134 Bearradh
180	280		110	142	1005	2340			27.9	352036 Bearradh

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
180	300		134	164	1290	2500			43.2	352136 Bearradh
190	290		110	142	1005	2340			28.8	352038 Bearradh
190	320		130	170	1160	2410			50.4	352138 Bearradh
200	310		120	154	1500	2900			41.9	352040 Beartáin
200	340		150	184	1600	3300			61.5	352140 Bearing
220	340		128	166	1210	2500			42.7	352044 Bearradh
220	370		150	195	1700	3200			76.3	352144 Bearradh
240	360		128	166	1430	3200			52.8	352048 Bearradh
240	400		163	210	2000	4100			98.1	352148 Bearradh
260	400		146	190	1530	3630			75.6	352052 Bearradh
260	440		180	225	2200	4600			126	352152 Bearradh
280	420		146	190	1820	4050			81.3	352056 Bearradh
300	460		168	220	2200	5300			117	352060 Beartán
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Bearing
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Imthacaí
30	66.675	23.5	42.48	47.24				10400	0.63	80030/80066XPT Bearing
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Imthacaí
31.75	72	26	46.5	51.75				9600	0.75	Imthacaí 100031X/100072PT
31.75	76.2	26	46.5	51.75				9600	0.75	Imthacaí 100031X/100076XPT
31.75	80	26	46.5	51.75				9600	0.75	Imthacaí 100031X/100080PT
33.338	66.675	23.5	42.48	47.24				10400	0.63	Imthacaí 80033X/80066XPT
33.338	68	23.5	42.48	47.24				10400	0.63	Imthacaí 80033X/80068PT
34.925	72	26	46.5	51.75				9600	0.75	100034X/100072PT Imthacaí
34.925	76.2	26	46.5	51.75				9600	0.75	Imthacaí 100034X/100076XPT
34.925	80	26	46.5	51.75				9600	0.75	Imthacaí 100034X/100080PT
35	66.675	23.5	42.48	47.24				10400	0.6	80035/80066XPT Bearing
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Imthacaí
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Bearing
35	76.2	26	46.5	51.75				9600	0.75	100035/100076XPT Bearing
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
38.1	76	26	45.5	51.25				8800	0.92	101038X/101076PT Imthacaí
38.1	76.2	26	45.5	51.25				8800	0.92	101038X/101076XPT Imthacaí
38.1	80	26	45.5	51.25				8800	0.92	101038X/101080PT Imthacaí
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT Imthacaí
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Imthacaí
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Imthacaí
41.275	76	26	45.5	51.25				8800	0.92	101041X/101076PT Imthacaí
41.275	76.2	26	45.5	51.25				8800	0.92	101041X/101076XPT Imthacaí
41.275	80	26	45.5	51.25				8800	0.92	Imthacaí 101041X/101080PT
41.275	85	24.5	48.66	51.83				8200	1.03	112041X/112085PT Imthacaí
44.45	85	24.5	48.66	51.83				8200	1.03	112044X/112085PT Imthacaí
44.45	85	28	55.66	58.83				8200	1.07	119044X/119085PT Imthacaí
44.45	88.9	28	55.66	58.83				8200	1.07	119044X/119088XPT Imthacaí
44.45	90	29	51.3	57.65				7400	1.17	111044X/111090PT Imthacaí
44.45	93.266	29	51.3	57.65				7400	1.17	111044X/111093XPT Imthacaí
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Imthacaí
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Bearing
45	88.9	28	55.66	58.83				8200	1.07	119045/119088XPT Bearing
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Bearing
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT Imthacaí
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT Imthacaí
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT Imthacaí
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Bearing
50.8	90	29	51.3	57.65				7400	1.17	111050X/111090PT Imthacaí
50.8	96.838	29.5	54	59.5				6900	1.63	Imthacaí 110050X/110096XPT
50.8	98.425	29.5	54	59.5				6900	1.63	Imthacaí 110050X/110098XPT
50.8	100	29.5	54	59.5				6900	1.63	Imthacaí 110050X/110100PT
53.975	96.838	29.5	54	59.5				6900	1.63	110053X/110096XPT Imthacaí
53.975	98.425	29.5	54	59.5				6900	1.63	110053X/110098XPT Imthacaí
53.975	100	29.5	54	59.5				6900	1.63	Imthacaí 110053X/110100PT

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT Bearing
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT Imthacaí
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Bearing
57.15	96.838	29.5	54	59.5				6900	1.63	110057X/110096XPT Imthacaí
57.15	98.425	29.5	54	59.5				6900	1.63	110057X/110098XPT Imthacaí
57.15	100	29.5	54	59.5				6900	1.63	Imthacaí 110057X/110100PT
57.15	100	26.5	46.88	52.44				6600	1.38	113057X/113100PT Imthacaí
57.15	101.6	26.5	46.88	52.44				6600	1.38	113057X/113101XPT Imthacaí
57.15	110	33	60.3	66.65				6200	2.03	120057X/120110PT Imthacaí
57.15	112.712	33	60.3	66.65				6200	2.03	120057X/120112XPT Imthacaí
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Bearing
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT Imthacaí
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Bearing
60	112.712	33	60.3	66.65				6200	2.03	120060/120112XPT Bearing
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Bearing
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Imthacaí
60.325	100	26.5	46.88	52.44				6600	1.38	Imthacaí 113060X/113100PT
60.325	101.6	26.5	46.88	52.44				6600	1.38	113060X/113101XPT Imthacaí
63.5	110	33	60.3	66.65				6200	1.94	Imthacaí 120063X/120110PT
63.5	120	32	59.88	65.44				5700	2.45	Imthacaí 130063X/130120PT
63.5	127	32	59.88	65.44				5700	2.45	130063X/130127PT Imthacaí
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Bearing
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Imthacaí
69.85	112.712	33	60.3	66.65				5800	1.83	124069X/124112XPT Imthacaí
69.85	120	32	59.88	65.44				5700	2.32	Imthacaí 130069X/130120PT
69.85	120	42	73.12	81.06				5700	3.05	135069X/135120PT Imthacaí
69.85	127	32	59.88	65.44				5700	2.45	130069X/130127PT Imthacaí
70	112.712	33	60.3	66.65				5800	1.83	124070/124112XPT Bearing
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Imthacaí
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Bearing
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Bearing
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT Bearing
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT Bearing
76.2	127	33.5	60.5	66.75				5300	2.79	133076X/133127PT Imthacaí
76.2	130	33.5	60.5	66.75				5300	2.79	133076X/133130PT Imthacaí
76.2	133.35	33.5	60.5	66.75				5300	2.79	133076X/133133XPT Imthacaí
76.2	136.525	33.5	60.5	66.75				5300	2.79	133076X/133136XPT Imthacaí
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Bearing
82.55	140	38.5	69.14	77.07				4900	3.68	Imthacaí 140082X/140140PT
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Bearing
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Bearing
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT Bearing
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Bearing
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT Bearing
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT Bearing
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Imthacaí
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT Bearing
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Bearing
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT Bearing
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Bearing
92.075	150	33.75	62	68.5				4400	3.8	131092X/131150PT Imthacaí
92.075	152.4	33.75	62	68.5				4400	3.8	131092X/131152XPT Imthacaí
92.075	158.75	33.75	62	68.5				4400	3.8	131092X/131158XPT Imthacaí
93.663	150	33.75	62	68.5				4400	3.8	131093X/131150PT Imthacaí
93.663	152.4	33.75	62	68.5				4400	3.8	131093X/131152XPT Imthacaí
93.663	158.75	33.75	62	68.5				4400	3.8	131093X/131158XPT Imthacaí
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Bearing
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Bearing
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Bearing
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Bearing
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Bearing
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Bearing
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Bearing
98.425	152.4	42	75.8	83.9				4300	4.3	160098X/160152XPT Imthacaí
98.425	158.75	42	78.5	83.9				4300	4.3	160098X/160158XPT Imthacaí
98.425	160	42	78.5	83.9				4300	4.3	Imthacaí 160098X/160160PT
98.425	161.925	42	78.5	83.9				4300	4.3	160098X/160161XPT Imthacaí
100	170	46	84	92				3900	7.67	180100/180170PT Bearing
100	180	46	84	92				3900	7.67	180100/180180PT Bearing
100	180.975	46	84	92				3900	7.67	180100/180180XPT Bearing
100	190	46	84	92				3900	9.58	180100/180190PT Bearing
101.6	165.1	39.5	63.51	73.03				3900	5.68	141101X/141165XPT Imthacaí
101.6	170	46	84	92				3900	7.67	Imthacaí 180101X/180170PT
101.6	180	46	84	92				3900	7.67	Imthacaí 180101X/180180PT
101.6	180.975	46	84	92				3900	7.81	Imthacaí 180101X/180180XPT
101.6	190	46	84	92				3900	9.56	Imthacaí 180101X/180190PT
105	170	46	84	92				3900	7.67	180105/180170PT Bearing
105	180	46	84	92				3900	7.67	180105/180180PT Bearing
105	180.975	46	84	92				3900	7.58	180105/180180XPT Bearing
105	190	46	84	92				3900	9.38	180105/180190PT Bearing
107.95	165.1	39.5	63.51	73.03				3900	5.68	141107X/141165XPT Imthacaí
111.125	180.975	50	82.6	95.3				3600	7.03	181111X/181180XPT Imthacaí
111.125	190	50	82.6	95.3				3600	8.68	181111X/181190PT Imthacaí
111.125	190.5	50	82.6	95.3				3600	8.78	181111X/181190XPT Imthacaí
111.125	200.025	50	82.6	95.3				3600	8.68	181111X/181200XPT Imthacaí
115	165	31	55	60				3900	2.85	105115/105165PT Bearing
115	180.975	50	82.6	95.3				3600	6.78	181115/181180XPT Bearradh
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
115	190.5	50	82.6	95.3				3600	8.53	181115/181190XPT Bearing
115	200.025	50	82.6	95.3				3600	8.68	181115/181200XPT Bearing
118	180.975	50	82.6	95.3				3600	6.57	181118/181180XPT Bearradh
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Bearing
118	190.5	50	82.6	95.3				3600	8.23	181118/181190XPT Bearing
118	200.025	50	82.6	95.3				3600	8.68	181118/181200XPT Bearradh
120	165	31	55	60				3900	2.85	105120/105165PT Bearing
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Bearing
120	190.5	5	82.6	95.3				3500	7.45	184120/184190XPT Bearradh
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Bearing
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Bearing
127	175	31	55	60				3900	2.85	109127X/109175PT Imthacaí
127	196.85	42	85.74	93.67				3400	7.42	164127X/164196XPT Imthacaí
127	200.025	42	85.74	93.67				3400	7.42	164127X/164200XPT Imthacaí
127	215	51	92	101				3100	11.05	Imthacaí 200127X/200215PT
127	215.9	51	92	101				3100	11.05	Imthacaí 200127X/200215XPT
133.35	196.85	42	85.74	93.67				3400	7.42	164133X/164196XPT Imthacaí
133.35	200.025	42	85.74	93.67				3400	7.42	164133X/164200XPT Imthacaí
133.35	215	51	92	101				3100	11.05	200133X/200215PT Imthacaí
133.35	215.9	51	92	101				3100	10.55	Imthacaí 200133X/200215XPT
136.525	215	51	92	101				3100	11.05	200136X/200215PT Imthacaí
136.525	215.9	51	92	101				3100	10.25	Imthacaí 200136X/200215XPT
139.7	215	51	92	101				3100	11.05	Imthacaí 200139X/200215PT
139.7	215.9	51	92	101				3100	11.05	Imthacaí 200139X/200215XPT
139.7	241.3	59	104	115				2900	17.7	240139X/240241XPT Imthacaí
140	200	42	73	80.15				3100	6.38	161140/161200PT Bearing
140	200.025	42	73	80.15				3100	6.38	161140/161200XPT Bearing
142.875	200	42	73	80.15				3100	6.38	161142X/161200PT Imthacaí
142.875	200.025	42	73	80.15				3100	6.38	161142X/161200XPT Imthacaí
145	241.3	59	104	115				2900	17.15	240145/240241XPT Bearradh

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
145	256	51	92	101				2700	11.83	203145/203256PT Bearing
149.225	241.3	59	104	115				2900	17.15	240149X/240241XPT Imthacaí
150	210	42	76	84				3000	9.1	163150/163210PT Bearing
152.4	222.25	49	81.2	93.1				3000	9.08	183152X/183222XPT Imthacaí
152.4	254	74	116.9	135.95				2600	21.72	281152X/281254XPT Imthacaí
152.4	266.7	74	116.9	135.95				2600	21.72	281152X/281266XPT Imthacaí
155.575	254	74	116.9	135.95				2600	21.72	281155X/281254XPT Imthacaí
155.575	266.7	74	116.9	135.95				2600	21.72	281155X/281266XPT Imthacaí
156	235	51	92	101				2700	11.83	203156/203235PT Bearing
165.1	254	50	88.96	98.48				2600	12.7	186165X/186254XPT Imthacaí
170	254	50	88.96	98.48				2600	12.7	186170/186254XPT Bearing
177.8	227.013	35	63.48	69.24				2700	5.07	115177X/115227XPT Imthacaí
177.8	254	50	88.96	98.48				2600	12.7	186177X/186254XPT Imthacaí
177.8	288.925	71	122.25	138.12				2300	27.2	280177X/280288XPT Imthacaí
185	258	50	90	100				2500	12	187185/187258PT Bearing
190.5	282.575	54	91.42	105.71				2300	14.1	242190X/242282XPT Imthacaí
190.5	290	52	96	105				2200	14.2	206190X/206290PT Imthacaí
203.2	310	72	121.08	138.54				2100	25	283203X/283310PT Imthacaí
203.2	317.5	72	121.08	138.54				2100	25	283203X/283317XPT Imthacaí
210	290	52	96	105				2200	13.1	206210/206290PT Bearing
210	310	72	121.08	138.54				2100	25	283210/283310PT Bearing
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT Bearing
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT Bearing
230	330	55	90.24	106.12				1900	21	244230X/244330PT Imthacaí
234.95	327.025	55	90.24	106.12				1900	21	244234X/244327XPT Imthacaí
234.95	330	55	90.24	106.12				1900	21	244234X/244330PT Imthacaí
260	385	66	114.34	130.12				1700	32	382260/382385PT Bearing
25	52		36.5	43				13300	0.46	74025/74052GUD Imthacaí
30	62		42.5	51				11600	0.64	70030/70062GUD Imthacaí
30	66.675		42.48	52				10400	0.78	80030/80066XGUD Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
30	68		42.48	52				10400	0.78	80030/80068GUD Imthacaí
32	72		46.5	57				9600	0.825	100031X/100072GUD Imthacaí
32	76.2		46.5	57				9600	0.825	100031X/100076XGUD Imthacaí
32	80		46.5	57				9600	0.825	Imthacaí 100031X/100080GUD
33	66.675		42.48	52				10400	0.78	Imthacaí 80033X/80066XGUD
33	68		42.48	52				10400	0.78	Imthacaí 80033X/80068GUD
35	72		46.5	57				9600	0.825	100034X/100072GUD Imthacaí
35	76.2		46.5	57				9600	0.825	100034X/100076XGUD Imthacaí
35	80		46.5	57				9600	0.825	Imthacaí 100034X/100080GUD
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Bearing
35	68		42.48	52				10400	0.75	80035/80068GUD Imthacaí
35	72		46.5	57				9600	0.825	100035/100072GUD Imthacaí
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Bearing
35	80		46.5	57				9600	0.825	100035/100080GUD Bearing
36	72		36.5	42				9600	0.58	102036/102072GUD Imthacaí
38	76		45.5	57				8800	0.85	101038X/101076GUD Imthacaí
38	76.2		45.5	57				8800	0.85	101038X/101076XGUD Imthacaí
38	80		45.5	57				8800	0.85	101038X/101080GUD Imthacaí
40	76		45.5	57				8800	0.85	101040/101076GUD Imthacaí
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Imthacaí
40	80		45.5	57				8800	1.025	101040/101080GUD Imthacaí
40	85		48.66	55				8200	1.19	112040/112085GUD Imthacaí
41	76		45.5	57				8800	0.85	101041X/101076GUD Imthacaí
41	76.2		45.5	57				8800	0.85	101041X/101076XGUD Imthacaí
41	80		45.5	57				8800	0.85	Imthacaí 101041X/101080GUD
41	85		48.66	55				8200	1.07	112041X/112085GUD Imthacaí
44	90		51.3	64				7400	1.33	111044X/111090GUD Imthacaí
44	93.266		51.3	64				7400	1.33	111044X/111093XGUD Imthacaí
44	85		48.66	55				8200	1.07	112044X/112085GUD Imthacaí
44	85		55.66	62				8200	1.17	119044X/119085GUD Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
44	88.9		55.66	62				8200	1.17	119044X/119088XGUD Imthacaí
45	85		48.66	55				8200	1.07	112045/112085GUD Imthacaí
45	85		55.66	62				8200	1.17	119045/119085GUD Imthacaí
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Bearing
50	90		51.3	64				7400	1.33	111050/111090GUD Imthacaí
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Imthacaí
50	96.838		54	65				6900	1.945	110050/110096XGUD Imthacaí
50	98.425		54	65				6900	1.945	110050/110098XGUD Imthacaí
50	100		54	65				6900	1.945	110050/110100GUD Imthacaí
51	90		51.3	64				7400	1.33	111050X/111090GUD Imthacaí
51	96.838		54	65				6900	1.945	110050X/110096XGUD Imthacaí
51	98.425		54	65				6900	1.945	Imthacaí 110050X/110098XGUD
51	100		54	65				6900	1.945	Imthacaí 110050X/110100GUD
54	96.838		54	65				6900	1.945	110053X/110096XGUD Imthacaí
54	98.425		54	65				6900	1.945	110053X/110098XGUD Imthacaí
54	100		54	65				6900	1.945	Imthacaí 110053X/110100GUD
55	96.838		54	65				6900	1.945	110055/110096XGUD Imthacaí
55	98.425		54	65				6900	1.945	110055/110098XGUD Imthacaí
55	100		54	65				6900	1.765	110055/110100GUD Imthacaí
57	96.838		54	65				6900	1.945	110057X/110096XGUD Imthacaí
57	98.425		54	65				6900	1.945	110057X/110098XGUD Imthacaí
57	100		54	65				6900	1.945	110057X/110100GUD Imthacaí
57	100		46.88	58				6600	1.825	113057X/113100GUD Imthacaí
57	101.6		46.88	58				6600	1.825	113057X/113101XGUD Imthacaí
57	110		60.3	73				6200	2.39	120057X/120110GUD Imthacaí
57	112.712		60.3	73				6200	2.39	120057X/120112XGUD Imthacaí
60	100		46.88	58				6600	1.825	113060/113100GUD Imthacaí
60	101.6		46.88	58				6600	1.825	113060/113101XGUD Imthacaí
60	110		60.3	73				6200	2.39	120060/120110GUD Bearing
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
60	120		59.88	71				5700	2.86	130060/130120GUD Imthacaí
60	127		59.88	71				5700	2.86	130060/130127GUD Imthacaí
60	100		46.88	58				6600	1.825	Imthacaí 113060X/113100GUD
60	101.6		46.88	58				6600	1.825	113060X/113101XGUD Imthacaí
64	110		60.3	73				6200	2.21	Imthacaí 120063X/120110GUD
64	120		59.88	71				5700	2.86	Imthacaí 130063X/130120GUD
64	127		59.88	71				5700	2.86	130063X/130127GUD Imthacaí
65	120		59.88	71				5700	2.86	130065/130120GUD Imthacaí
65	127		59.88	71				5700	2.86	130065/130127GUD Imthacaí
70	112.712		60.3	73				5800	2.015	124069X/124112XGUD Imthacaí
70	120		59.88	71				5700	2.61	130069X/130120GUD Imthacaí
70	120		73.12	89				5700	2.73	135069X/135120GUD Imthacaí
70	127		59.88	71				5700	2.86	130069X/130127GUD Imthacaí
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Imthacaí
70	120		59.88	71				5700	2.64	130070/130120GUD Imthacaí
70	127		59.88	71				5700	2.86	130070/130127GUD Imthacaí
73	120		49.7	64				5500	2.35	123073X/123120GUD Imthacaí
73	120.65		49.7	64				5500	2.35	123073X/123120XGUD Imthacaí
73	121.444		49.7	64				5500	2.35	123073X/123121XGUD Imthacaí
73	123.825		49.7	64				5500	2.35	123073X/123123XGUD Imthacaí
75	120		49.7	64				5500	2.25	123075/123120GUD Imthacaí
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Imthacaí
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Bearing
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Imthacaí
75	127		60.5	73				5300	3.23	133075/133127GUD Imthacaí
75	130		60.5	73				5300	3.23	133075/133130GUD Imthacaí
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Imthacaí
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Imthacaí
76	120		49.7	64				5500	2.25	123076X/123120GUD Imthacaí
76	120.65		49.7	64				5500	2.25	123076X/123120XGUD Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
76	123.825		49.7	64				5500	2.25	123076X/123123XGUD Imthacaí
76	127		60.5	73				5300	3.23	133076X/133127GUD Imthacaí
76	130		60.5	73				5300	3.23	133076X/133130GUD Imthacaí
76	133.35		60.5	73				5300	3.23	133076X/133133XGUD Imthacaí
76	136.525		60.5	73				5300	3.23	133076X/133136XGUD Imthacaí
78	120		49.7	64				5500	2.25	123077X/123120GUD Imthacaí
78	120.65		49.7	64				5500	2.25	123077X/123120XGUD Imthacaí
78	121.444		49.7	64				5500	2.25	123077X/123121XGUD Imthacaí
78	123.825		49.7	64				5500	2.25	123077X/123123XGUD Imthacaí
80	140		69.14	85				4900	4.345	140080/140140GUD Imthacaí
81	133.35		58.12	74				4900	2.25	126080X/126133XGUD Imthacaí
83	133.35		58.12	74				4900	2.25	126082X/126133XGUD Imthacaí
83	136.525		58.12	74				4900	2.25	126082X/126136XGUD Imthacaí
83	140		69.14	85				4900	4.145	140082X/140140GUD Imthacaí
84	133.35		58.12	74				4900	2.4	126084X/126133XGUD Imthacaí
84	136.525		58.12	74				4900	2.4	126084X/126136XGUD Imthacaí
85	140		69.14	85				4900	3.945	140085/140140GUD Imthacaí
85	170		89	106				4200	8.345	210085/210170GUD Bearing
86	133.35		58.12	74				4900	2.4	126085X/126133XGUD Imthacaí
86	136.525		58.12	74				4900	2.4	126085X/126136XGUD Imthacaí
89	133.35		58.12	74				4900	2.4	126088X/126133XGUD Imthacaí
89	136.525		58.12	74				4900	2.4	126088X/126136XGUD Imthacaí
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Imthacaí
90	170		89	106				4200	8.345	210090/210170GUD Bearing
90	150		62	75				4400	4.625	131090/131150GUD Imthacaí
90	152.4		62	75				4400	4.625	131090/131152XGUD Imthacaí
90	158.75		62	75				4400	4.625	131090/131158XGUD Imthacaí
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Bearing
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Imthacaí
90	160		75.8	92				4300	4.95	160090/160160GUD Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Bearing
92	150		62	75				4400	4.625	131092X/131150GUD Imthacaí
92	152.4		62	75				4400	4.625	131092X/131152XGUD Imthacaí
92	158.75		62	75				4400	4.625	131092X/131158XGUD Imthacaí
94	152.4		62	75				4400	4.625	131093X/131152XGUD Imthacaí
94	150		62	75				4400	4.625	131093X/131150GUD Imthacaí
94	158.75		62	75				4400	4.625	131093X/131158XGUD Imthacaí
95	150		62	75				4400	4.625	131095/131150GUD Imthacaí
95	152.4		62	75				4400	4.505	131095/131152XGUD Bearing
95	158.75		62	75				4400	4.625	131095/131158XGUD Imthacaí
95	170		89	106				4200	8.345	210095/210170GUD Bearing
97	152.4		62	75				4400	4.345	131097/131152XGUD Bearing
97	150		62	75				4400	4.625	131097/131150GUD Imthacaí
97	158.75		62	75				4400	4.625	131097/131158XGUD Imthacaí
98	152.4		75.8	92				4300	4.95	160098X/160152XGUD Imthacaí
98	158.75		75.8	92				4300	4.95	160098X/160158XGUD Imthacaí
98	160		75.8	92				4300	4.95	160098X/160160GUD Imthacaí
98	161.925		75.8	92				4300	4.95	160098X/160161XGUD Imthacaí
100	170		84	100				3900	11	180100/180170GUD Bearing
100	180		84	100				3900	9.1	180100/180180GUD Imthacaí
100	180.975		84	100				3900	11	180100/180180XGUD Imthacaí
100	190		84	100				3900	11	180100/180190GUD Imthacaí
102	165.1		67.96	87				3900	9.16	141101X/141165XGUD Imthacaí
102	170		84	100				3900	11	180101X/180170GUD Imthacaí
102	180		84	100				3900	11	Imthacaí 180101X/180180GUD
102	180.975		84	100				3900	9.28	Imthacaí 180101X/180180XGUD
102	190		84	100				3900	10.96	Imthacaí 180101X/180190GUD
105	170		84	100				3900	11	180105/180170GUD Imthacaí
105	180		84	100				3900	11	180105/180180GUD Imthacaí
105	180.975		84	100				3900	8.82	180105/180180XGUD Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
105	190		84	100				3900	10.5	180105/180190GUD Imthacaí
108	165.1		67.96	87				3900	9.16	141107X/141165XGSUD Imthacaí
111	180.975		82.6	108				3600	8.34	181111X/181180XGUD Imthacaí
111	190		82.6	108				3600	9.95	181111X/181190GUD Imthacaí
111	190.5		82.6	108				3600	10.05	181111X/181190XGUD Imthacaí
111	200.025		82.6	108				3600	8.34	181111X/181200XGUD Imthacaí
115	165		55	65				3900	3.36	105115/105165GUD Imthacaí
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Bearing
115	190		82.6	108				3600	9.45	181115/181190GUD Bearing
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Bearing
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Bearing
118	180.975		82.6	108				3600	7.42	181118/181180XGUD Bearing
118	190		82.6	108				3600	9.03	181118/181190GUD Bearing
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Bearing
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Bearing
120	165		55	65				3900	3.36	105120/105165GUD Imthacaí
120	190		82.6	108				3500	8.46	184120/184190GUD Bearing
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Bearing
120	199		82.6	108				3500	8.46	184120/184199GUD Imthacaí
120	200		82.6	108				3500	8.46	184120/184200GUD Imthacaí
127	196.85		85.74	101.6				3400	8.8	164127X/164196XGUD Imthacaí
127	200.025		85.74	101.6				3400	8.8	164127X/164200XGUD Imthacaí
127	215		92	110				3100	13.54	Imthacaí 200127X/200215GUD
127	215.9		92	110				3100	13.54	200127X/200215XGUD Imthacaí
133	196.85		85.74	101.6				3400	8.8	164133X/164196XGUD Imthacaí
133	200.025		85.74	101.6				3400	8.8	164133X/164200XGUD Imthacaí
133	215		92	110				3100	13.54	Imthacaí 200133X/200215GUD
133	215.9		92	110				3100	12.49	200133X/200215XGUD Imthacaí
137	215		92	110				3100	13.54	Imthacaí 200136X/200215GUD
137	215.9		92	110				3100	11.97	Imthacaí 200136X/200215XGUD

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
140	215		92	110				3100	13.54	Imthacaí 200139X/200215GUD
140	215.9		92	110				3100	13.54	Imthacaí 200139X/200215XGUD
140	241.3		104	126				2900	19.86	240139X/240241XGUD Imthacaí
140	200		78	92.3				3100	9.7	161140/161200GSUD Bearing
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Imthacaí
143	200		78	92.3				3100	9.7	161142X/161200GSUD Imthacaí
143	200.025		78	92.3				3100	9.7	161142X/161200XGSUD Imthacaí
145	241.3		104	126				2900	18.78	240145/240241XGUD Bearing
145	256		92	110				2700	14.49	203145/203256GUD Imthacaí
149	241.3		104	126				2900	18.78	240149X/240241XGUD Imthacaí
150	210		76	92				3000	9.96	163150/163210GUD Bearing
152	222.25		81.2	105				3000	10.73	183152X/183222XGUD Imthacaí
152	254		116.9	155				2600	24.87	281152X/281254XGUD Imthacaí
152	266.7		116.9	155				2600	24.87	281152X/281266XGUD Imthacaí
156	254		116.9	155				2600	24.87	281155X/281254XGUD Imthacaí
156	266.7		116.9	155				2600	24.87	281155X/281266XGUD Imthacaí
156	235		92	110				2700	14.49	203156/203235GUD Imthacaí
165	254		88.96	108				2600	14.9	186165X/186254XGUD Imthacaí
170	254		88.96	108				2600	14.9	186170/186254XGUD Bearing
178	227.013		63.48	75				2700	5.93	115177X/115227XGUD Imthacaí
178	254		88.96	108				2600	14.9	186177X/186254XGUD Imthacaí
178	288.925		122.25	154				2300	31.8	280177X/280288XGUD Imthacaí
185	258		90	110				2500	11.94	187185/187258GUD Bearing
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Bearing
191	266.7		94.14	113.18				2400	15	204190X/204266XGUD Imthacaí
191	282.575		91.42	120				2300	19.3	242190X/242282XGUD Imthacaí
191	290		96	114				2200	17	206190X/206290GUD Imthacaí
203	310		121.07	156				2100	32	283203X/283310GUD Imthacaí
203	317.5		121.07	156				2100	35.3	283203X/283317XGUD Imthacaí
210	290		96	114				2200	17	206210/206290GUD Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
210	310		121.07	156				2100	31.2	283210/283310GUD Bearing
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Bearing
216	355.6		124.72	166				1900	50	284215X/284355XGUD Imthacaí
229	355.6		124.72	166				1900	50	284228X/284355XGUD Imthacaí
230	327.025		90.24	122				1900	23	244230/244327XGUD Bearing
230	330		90.24	122				1900	26.84	244230/244330GUD Bearing
235	327.025		90.24	122				1900	20	244234X/244327XGUD Imthacaí
235	330		90.24	122				1900	26.8	244234X/244330GUD Imthacaí
235	355.6		124.72	166				1900	47.43	284234X/284355XGUD Imthacaí
254	400.05		114.24	146				1700	53.98	382254X/382400XGUD Imthacaí
275	406.4		140	176				1600	65.94	320275/320406XGUD Imthacaí
280	406.4		140	176				1600	63.18	320280X/320406XGUD Imthacaí
330	482.6		158.72	200				1400	104	380330X/380482XGUD Imthacaí
338	419.1		79	94				1500	30.4	152338X/152419XGUD Imthacaí
356	482.6		100.55	145				1400	57.3	282355X/282482XGUD Imthacaí
381	508		147	187				1300	79.2	303381X/303508XGUD Imthacaí
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Imthacaí
432	533.4		100.78	123				1200	44.7	232431X/232533XGUD Imthacaí
457	596.9		147	187				1100	94.3	300457X/300596XGUD Imthacaí
506	636		147	187				1000	115	307506/307636GUD Imthacaí
25	52		36.5	43				13300	0.48	74025/74052HUWF Bearing
30	62		42.5	51				11600	0.66	70030/70062HUWF Bearing
30	66.675		42.48	52				10400	0.8	80030/80066XHUWF Bearing
30	68		42.48	52				10400	0.8	80030/80068HUWF Bearing
32	72		46.5	57				9600	0.86	100031X/100072HUWF Imthacaí
32	76.2		46.5	57				9600	0.86	100031X/100076XHUWF Imthacaí
32	80		46.5	57				9600	0.86	100031X/100080HUWF Imthacaí
33	66.675		42.48	52				10400	0.8	80033X/80066XHUWF Imthacaí
33	68		42.48	52				10400	0.8	80033X/80068HUWF Imthacaí
35	72		46.5	57				9600	0.86	100034X/100072HUWF Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
35	76.2		46.5	57				9600	0.86	100034X/100076XHUWF Imthacaí
35	80		46.5	57				9600	0.86	100034X/100080HUWF Imthacaí
35	66.675		42.48	52				10400	0.74	80035/80066XHUWF Bearing
35	72		46.5	57				9600	0.855	100035/100072HUWF Bearing
35	76.2		46.5	57				9600	0.86	100035/100076XHUWF Bearing
35	80		46.5	57				9600	0.86	100035/100080HUWF Bearing
36	72		36.5	42				9600	0.595	102036/102072HUWF Bearing
38	76		45.5	57				8800	0.865	101038X/101076HUWF Imthacaí
38	76.2		45.5	57				8800	0.865	101038X/101076XHUWF Imthacaí
38	80		45.5	57				8800	0.865	101038X/101080HUWF Imthacaí
40	76		45.5	57				8800	0.865	101040/101076HUWF Bearing
40	76.2		45.5	57				8800	0.865	101040/101076XHUWF Imthacaí
40	80		45.5	57				8800	1.07	101040/101080HUWF Bearing
40	85		48.66	55				8200	1.13	112040/112085HUWF Bearing
41	76		45.5	57				8800	0.865	101041X/101076HUWF Imthacaí
41	76.2		45.5	57				8800	0.865	101041X/101076XHUWF Imthacaí
41	80		45.5	57				8800	0.865	101041X/101080HUWF Imthacaí
41	85		48.66	55				8200	1.11	112041X/112085HUWF Imthacaí
44	85		48.66	55				8200	1.11	112044X/112085HUWF Imthacaí
44	85		55.66	62				8200	1.19	119044X/119085HUWF Imthacaí
44	88.9		55.66	62				8200	1.19	119044X/119088XHUWF Imthacaí
44	90		51.3	64				7400	1.38	111044X/111090HUWF Imthacaí
44	93.266		51.3	64				7400	1.38	111044X/111093XHUWF Imthacaí
45	85		48.66	55				8200	1.11	112045/112085HUWF Bearing
45	85		55.66	62				8200	1.19	119045/119085HUWF Bearing
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Bearing
50	90		51.3	64				7400	1.38	111050/111090HUWF Bearing
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Bearing
50	96.838		54	65				6900	2.005	110050/110096XHUWF Bearing
50	98.425		54	65				6900	2.005	110050/110098XHUWF Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
50	100		54	65				6900	2.005	110050/110100HUWF Bearing
51	90		51.3	64				7400	1.38	111050X/111090HUWF Imthacaí
51	96.838		54	65				6900	2.005	110050X/110096XHUWF Imthacaí
51	98.425		54	65				6900	2.005	110050X/110098XHUWF Imthacaí
51	100		54	65				6900	2.005	Imthacaí 110050X/110100HUWF
54	96.838		54	65				6900	2.005	110053X/110096XHUWF Imthacaí
54	98.425		54	65				6900	2.005	110053X/110098XHUWF Imthacaí
54	100		54	65				6900	2.005	110053X/110100HUWF Imthacaí
55	96.838		54	65				6900	2.005	110055/110096XHUWF Bearing
55	98.425		54	65				6900	2.005	110055/110098XHUWF Imthacaí
55	100		54	65				6900	1.825	110055/110100HUWF Bearing
57	96.838		54	65				6900	2.005	110057X/110096XHUWF Imthacaí
57	96.838		54	65				6900	2.005	110057X/110098XHUWF Imthacaí
57	100		54	65				6900	2.005	110057X/110100HUWF Imthacaí
57	100		46.88	58				6600	1.9	113057X/113100HUWF Imthacaí
57	101.6		46.88	58				6600	1.9	113057X/113101XHUWF Imthacaí
57	110		60.3	73				6200	2.47	120057X/120110HUWF Imthacaí
57	112.712		60.3	73				6200	2.47	120057X/120112XHUWF Imthacaí
60	100		46.88	58				6600	1.9	113060/113100HUWF Bearing
60	101.6		46.88	58				6600	1.9	113060/113101XHUWF Bearing
60	110		60.3	73				6200	2.47	120060/120110HUWF Bearing
60	112.712		60.3	73				6200	2.47	120060/120112XHUWF Bearing
60	120		59.88	71				5700	2.96	130060/130120HUWF Bearing
60	127		59.88	71				5700	2.96	130060/130127HUWF Bearing
60	100		46.88	58				6600	1.9	113060X/113100HUWF Imthacaí
60	101.6		46.88	58				6600	1.9	113060X/113101XHUWF Imthacaí
64	110		60.3	73				6200	2.29	120063X/120110HUWF Imthacaí
64	120		59.88	71				5700	2.96	130063X/130120HUWF Imthacaí
64	127		59.88	71				5700	2.96	130063X/130127HUWF Imthacaí
65	120		59.88	71				5700	2.96	130065/130120HUWF Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
65	127		59.88	71				5700	2.96	130065/130127HUWF Bearing
70	127		59.88	71				5700	2.96	130069X/130127HUWF Imthacaí
70	112.712		60.3	73				5800	2.085	124069X/124112XHUWF Imthacaí
70	120		59.88	71				5700	2.71	130069X/130120HUWF Imthacaí
70	120		73.12	89				5700	2.79	135069X/135120HUWF Imthacaí
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Bearing
70	120		59.88	71				5700	2.7	130070/130120HUWF Bearing
70	127		59.88	71				5700	2.96	130070/130127HUWF Bearing
73	120		49.7	64				5500	2.35	123073X/123120HUWF Imthacaí
73	120.65		49.7	64				5500	2.35	123073X/123120XHUWF Imthacaí
73	121.444		49.7	64				5500	2.35	123073X/123121XHUWF Imthacaí
73	123.825		49.7	64				5500	2.35	123073X/123123XHUWF Imthacaí
75	120		49.7	64				5500	2.25	123075/123120HUWF Bearing
75	120.65		49.7	64				5500	2.25	123075/123120XHUWF Bearing
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Bearing
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Bearing
75	127		60.5	73				5300	3.3	133075/133127HUWF Bearing
75	130		60.5	73				5300	3.3	133075/133130HUWF Bearing
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Bearing
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Bearing
76	120		49.7	64				5500	2.25	123076X/123120HUWF Imthacaí
76	120.65		49.7	64				5500	2.25	123076X/123120XHUWF Imthacaí
76	123.825		49.7	64				5500	2.25	123076X/123123XHUWF Imthacaí
76	127		60.5	73				5300	3.3	133076X/133127HUWF Imthacaí
76	130		60.5	73				5300	3.3	133076X/133130HUWF Imthacaí
76	133.35		60.5	73				5300	3.3	133076X/133133XHUWF Imthacaí
76	136.525		60.5	73				5300	3.3	133076X/133136XHUWF Imthacaí
78	120		49.7	64				5500	2.25	123077X/123120HUWF Imthacaí
78	120.65		49.7	64				5500	2.25	123077X/123120XHUWF Imthacaí
78	121.444		49.7	64				5500	2.25	123077X/123121XHUWF Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
78	123.825		49.7	64				5500	2.25	123077X/123123XHUWF Imthacaí
80	140		69.14	85				4900	4.545	140080/140140HUWF Bearing
81	133.35		58.12	74				4900	2.25	126080X/126133XHUWF Imthacaí
83	133.35		58.12	74				4900	2.25	126082X/126133XHUWF Imthacaí
83	136.525		58.12	74				4900	2.25	126082X/126136XHUWF Imthacaí
83	140		69.14	85				4900	4.345	140082X/140140HUWF Imthacaí
84	133.35		58.12	74				4900	2.4	126084X/126133XHUWF Imthacaí
84	136.525		58.12	74				4900	2.4	126084X/126136XHUWF Imthacaí
85	140		69.14	85				4900	4.145	140085/140140HUWF Bearing
85	170		89	106				4200	8.545	210085/210170HUWF Bearing
86	133.35		58.12	74				4900	2.4	126085X/126133XHUWF Imthacaí
86	136.525		58.12	74				4900	2.4	126085X/126136XHUWF Imthacaí
89	133.35		58.12	74				4900	2.4	126088X/126133XHUWF Imthacaí
89	136.525		58.12	74				4900	2.4	126088X/126136XHUWF Imthacaí
90	133.35		60.12	76				4800	4	117090/117133XHUWF Bearing
90	150		62	75				4400	4.745	131090/131150HUWF Bearing
90	152.4		62	75				4400	4.745	131090/131152XHUWF Bearing
90	152.4		75.8	92				4300	5.15	160090/160152XHUWF Bearing
90	158.75		62	75				4400	4.745	131090/131158XHUWF Bearing
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Bearing
90	160		75.8	92				4300	5.15	160090/160160HUWF Bearing
90	161.925		75.8	92				4300	5.15	160090/160161XHUWF Bearing
90	170		89	106				4200	8.545	210090/210170HUWF Bearing
92	150		62	75				4400	4.745	131092X/131150HUWF Imthacaí
92	152.4		62	75				4400	4.745	131092X/131152XHUWF Imthacaí
92	158.75		62	75				4400	4.745	131092X/131158XHUWF Imthacaí
94	150		62	75				4400	4.745	131093X/131150HUWF Imthacaí
94	152.4		62	75				4400	4.745	131093X/131152XHUWF Imthacaí
94	158.75		62	75				4400	4.745	131093X/131158XHUWF Imthacaí
95	150		62	75				4400	4.745	131095/131150HUWF Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Bearing
95	158.75		62	75				4400	4.745	131095/131158XHUWF Bearing
95	170		89	106				4200	8.545	210095/210170HUWF Bearing
97	150		62	75				4400	4.745	131097/131150HUWF Bearing
97	152.4		62	75				4400	4.465	131097/131152XHUWF Bearing
97	158.75		62	75				4400	4.745	131097/131158XHUWF Bearing
98	152.4		75.8	92				4300	5.15	160098X/160152XHUWF Imthacaí
98	158.75		75.8	92				4300	5.15	160098X/160158XHUWF Imthacaí
98	160		75.8	92				4300	5.15	160098X/160160HUWF Imthacaí
98	161.925		75.8	92				4300	5.15	160098X/160161XHUWF Imthacaí
100	170		84	100				3900	9.52	180100/180170HUWF Bearing
100	180		84	100				3900	9.42	180100/180180HUWF Bearing
100	180.975		84	100				3900	9.52	180100/180180XHUWF Bearing
100	190		84	100				3900	11.12	180100/180190HUWF Bearing
102	165.1		67.96	87				3900	9.4	141101X/141165XHUWF Imthacaí
102	170		84	100				3900	9.52	180101X/180170HUWF Imthacaí
102	180		84	100				3900	9.52	180101X/180180HUWF Imthacaí
102	180.975		84	100				3900	9.52	180101X/180180XHUWF Imthacaí
102	190		84	100				3900	11.08	180101X/180190HUWF Imthacaí
105	170		84	100				3900	9.52	180105/180170HUWF Bearing
105	180		84	100				3900	9.52	180105/180180HUWF Bearing
105	180.975		84	100				3900	9.06	180105/180180XHUWF Bearing
105	190		84	100				3900	10.62	180105/180190HUWF Bearing
108	165.1		67.96	87				3900	9.4	141107X/141165XHSUWF Imthacaí
111	180.975		82.6	108				3600	8.6	181111X/181180XHUWF Imthacaí
111	190		82.6	108				3600	10.1	181111X/181190HUWF Bearing
111	190.5		82.6	108				3600	10.4	181111X/181190XHUWF Imthacaí
111	200.025		82.6	108				3600	8.6	181111X/181200XHUWF Imthacaí
115	165		55	65				3900	3.45	105115/105165HUWF Bearing
115	180.975		82.6	108				3600	8.1	181115/181180XHUWF Bearing

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
115	190		82.6	108				3600	9.6	181115/181190HUWF Bearing
115	190.5		82.6	108				3600	9.9	181115/181190XHUWF Bearing
115	200.025		82.6	108				3600	8.6	181115/181200XHUWF Bearing
118	180.975		82.6	108				3600	7.68	181118/181180XHUWF Bearing
118	190		82.6	108				3600	9.18	181118/181190HUWF Bearing
118	190.5		82.6	108				3600	9.48	181118/181190XHUWF Bearing
118	200.025		82.6	108				3600	8.6	181118/181200XHUWF Bearing
120	165		55	65				3900	3.45	105120/105165HUWF Bearing
120	190		82.6	108				3500	8.8	184120/184190HUWF Bearing
120	190.5		82.6	108				3500	8.8	184120/184190XHUWF Bearing
120	199		82.6	108				3500	8.8	184120/184199HUWF Bearing
120	200		82.6	108				3500	8.8	184120/184200HUWF Bearing
127	196.85		85.74	101.6				3400	9.2	164127X/164196XHUWF Imthacaí
127	200.025		85.74	101.6				3400	9.2	164127X/164200XHUWF Imthacaí
127	215		92	110				3100	13.9	200127X/200215HUWF Imthacaí
127	215.9		92	110				3100	13.9	200127X/200215XHUWF Imthacaí
133	196.85		85.74	101.6				3400	9.2	164133X/164196XHUWF Imthacaí
133	196.85		76.74	92.6				3400	8.5	164133X/164196XHSUWF Imthacaí
133	200.025		85.74	101.6				3400	9.2	164133X/164200XHUWF Imthacaí
133	215		92	110				3100	13.9	200133X/200215HUWF Bearing
133	215.9		92	110				3100	12.85	200133X/200215XHUWF Imthacaí
137	215		92	110				3100	13.9	200136X/200215HUWF Imthacaí
137	215.9		92	110				3100	12.33	200136X/200215XHUWF Imthacaí
140	215		92	110				3100	13.9	200139X/200215HUWF Imthacaí
140	215.9		92	110				3100	13.9	200139X/200215XHUWF Imthacaí
140	241.3		104	126				2900	20.485	240139X/240241XHUWF Imthacaí
140	200		78	92.3				3100	10	161140/161200HSUWF Bearing
140	200.025		78	92.3				3100	10	161140/161200XHSUWF Bearing
143	200		78	92.3				3100	10	161142X/161200HSUWF Imthacaí
143	200.025		78	92.3				3100	10	161142X/161200XHSUWF Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Bearing
145	256		92	110				2700	14.87	203145/203256HUWF Bearing
149	241.3		104	126				2900	20.485	240149X/240241XHUWF Imthacaí
150	210		76	92				3000	10.2	163150/163210HUWF Bearing
152	222.25		81.2	105				3000	11.15	183152X/183222XHUWF Imthacaí
152	254		116.9	155				2600	25.6	281152X/281254XHUWF Imthacaí
152	266.7		116.9	155				2600	25.6	281152X/281266XHUWF Imthacaí
156	254		116.9	155				2600	25.6	281155X/281254XHUWF Imthacaí
156	266.7		116.9	155				2600	25.6	281155X/281266XHUWF Imthacaí
156	235		92	110				2700	14.87	203156/203235HUWF Bearing
165	254		88.96	108				2600	15	186165X/186254XHUWF Imthacaí
170	254		88.96	108				2600	15	186170/186254XHUWF Bearing
178	227.013		63.48	75				2700	6.15	115177X/115227XHUWF Imthacaí
178	254		88.96	108				2600	15	186177X/186254XHUWF Imthacaí
178	288.925		122.25	154				2300	32.6	280177X/280288XHUWF Imthacaí
185	258		90	110				2500	12.3	187185/187258HUWF Bearing
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Bearing
191	266.7		94.14	113.18				2400	15.5	204190X/204266XHUWF Imthacaí
191	282.575		91.42	120				2300	20	242190X/242282XHUWF Imthacaí
191	290		96	114				2200	17.3	206190X/206290HUWF Imthacaí
203	310		121.08	156				2100	32.8	283203X/283310HUWF Imthacaí
203	317.5		121.08	156				2100	36.3	283203X/283317XHUWF Imthacaí
210	290		96	114				2200	17.3	206210/206290HUWF Bearing
210	310		121.08	156				2100	32	283210/283310HUWF Bearing
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Bearing
216	355.6		124.72	166				1900	51	284215X/284355XHUWF Imthacaí
229	355.6		124.72	166				1900	51	284228X/284355XHUWF Imthacaí
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Bearing
230	330		90.24	122				1900	27.35	244230/244330HUWF Bearing
235	327.025		90.24	122				1900	21	244234X/244327XHUWF Imthacaí

Toisí bunúsacha					Bunrang rátáil ualach		Rátálacha luais		Aifreann	Múnla
Toisí bunúsacha					dinimiciúil	statach	Luas tagartha	Luas a theorannú	Aifreann	Bearradh Uimh.
d [mm]	D[mm]	B[mm]	C[mm]	T[mm]	C[kN]	C0 [kN]	[r/nóim]	[r/nóim]	[kg]	Bearradh Uimh.
235	330		90.24	122				1900	27	244234X/244330HUWF Imthacaí
235	355.6		124.72	166				1900	48.43	284234X/284355XHUWF Imthacaí
254	400.05		114.24	146				1700	55.5	382254X/382400XHUWF Imthacaí
275	406.4		140	176				1600	67.6	320275/320406XHUWF Bearing
280	406.4		140	176				1600	64.84	320280X/320406XHUWF Imthacaí
330	482.6		157.73	200				1400	105	380330X/380482XHUWF Imthacaí
338	419.1		79	94				1500	30.9	152338X/152419XHUWF Imthacaí
356	482.6		100.55	145				1400	58.7	282355X/282482XHUWF Imthacaí
381	508		147	187				1300	80	303381X/303508XHUWF Imthacaí
406	549.275		152.36	200				1200	98.25	323406XS/323549XHSUWF Imthacaí
432	533.4		100.78	123				1200	45	232431X/232533XHUWF Imthacaí
457	596.9		147	187				1100	95	300457X/300596XHUWF Imthacaí
506	636		147	187				1000	116	307506/307636HUWF bearing

Innealtóireacht Todhchaí na Gluaisne

Maidir le UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 - Imthacaí sorcóir barrchaolaithe Sraith Dúbailte suppliers and OEM/ODM BT2B 332504/HA2 - Imthacaí sorcóir barrchaolaithe Sraith Dúbailte company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Tuilleadh Fúinn Ukl Bearing Manufacturing Co.,Ltd

0+

blianta

Taithí Tionscail
0+

Éagsúlacht múnla
0+

Líon Fostaithe
0

$

Luach onnmhairithe bliantúil

Deimhniú Onóra

Nuacht

Cén fáth go bhfuil Bearing Roller Sorcóireach NU 309 Excels i Dearthaí Mótair agus Giarbhosca?
04 Jun, 2026
Eochair Beir leat: Tá Bearing NU 309 ar fheabhas mar Imthacaí Snámh Maidir le dearaí mótair agus giarbhosca nuair is ábhar imní ríthábhachtach é leathnú teirmeach an tseafta, is é an ...

LÉIGH TUILLEADH
Conas Fáinne Nilos 2206 AV a shuiteáil (Treoir Céim ar Chéim)
28 May, 2026
Suiteáil leis an taobh oscailte os comhair an imthacaí Chun a shuiteáil i gceart an 2206 AV Fáinne Nilos, cuir é sa chaoi is go díríonn an taobh dronnach (oscailte) i dt...

LÉIGH TUILLEADH
Conas an Bearing Liathróid Teagmhála Ceart Uillinn a Roghnú le haghaidh Feidhmchláir Ardluais?
21 May, 2026
Chun an chomhpháirt rollta is fearr a roghnú le haghaidh innealra rothlach ardluais, tá gá le tuiscint dhomhain ar choinníollacha oibriúcháin, céimseata inmheánach, agus bainistíocht theirmeach. I ...

LÉIGH TUILLEADH
Beachtas Faoi Bhrú: Príomhfhachtóirí Tiomána Trealamh Liachta Roghnú Bearings
14 May, 2026
I réimse na teicneolaíochta leighis atá ag forbairt go tapa, is féidir fiú an chomhpháirt is lú a chinneadh cé chomh rathúil is atá feiste tarrthála. Ina measc seo, imthacaí trealamh leighi...

LÉIGH TUILLEADH
