Imthacaí Bloc Pillow Bonn Tapped

Aonad Bearing Bloc Pillow Bonn Tapped comhdhéanta de Thithíocht Iarainn Teilgthe le Gléas Frith-uainíochta agus Imthacaí Liathróid Ionsáigh Scriú Socraithe. Tá dearadh séala slinger ag an Chrome Steel Insert Bearing, tá sé féin-ailíniú, agus tá sé feistithe le dhá scriúnna socraithe deartha go sonrach atá suite i bhfáinne istigh an imthacaí liathróid chun seafta a dhéanamh níos doichte agus a cheangal. Úsáidtear Bearing Bloc Pillow Base Tapped in iarratais éagsúla lena n-áirítear Talmhaíocht, Feithicleach, Tógáil, Caidéal, Trealamh Déantúsaíochta, Earraí Spóirt agus Tomhaltóirí, Comhthionóil Conveyor agus Fan, Innealra Feirme, HVAC, Muilte Beatha, i measc Trealamh Tionscail eile.

Déan Teagmháil Linn

RÉAMHV：Imthacaí Bloc Pillow Ar Aghaidh：Imthacaí Flange 4 Bolt

Sonraíochtaí
Déan Teagmháil Linn

Aonad Uimh.	Seafta Dia		Toisí (mm)										Méid Bolt	Meáchan
	d		H	L	J	A	G	H1	Ho	M	B	S	(mm)	(kg)
	(i)	(mm)	H	L	J	A	G	H1	Ho	M	B	S	(mm)	(kg)
UCWPA201		12	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.67
UCWPA202		15	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.63
UCWPA203		17	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.62
UCPA201		12	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.67
UCPA201-8	1/2		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.67
UCPA202		15	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA202-9	9/16		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA202-10	5/8		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.63
UCPA203		17	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.62
UCPA203-11	11/16		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.62
UCPA204		20	30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.6
UCPA204-12	3/4		30.2	76	52	38	13	11	62	M10	31	12.7	M10	0.6
UCPA205		25	36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-14	7/8		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-15	15/16		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-16	1		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA206		30	42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-17	1-1/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-18	1-1/8		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-19	1-3/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA206-20	1-1/4		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.2
UCPA207		35	47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-20	1-1/4		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-21	1-5/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-22	1-3/8		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA207-23	1-7/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.7
UCPA208		40	49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA208-24	1-1/2		49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA208-25	1-9/16		49.2	116	84	54	20	13	100	M14	49.2	19	M14	1.9
UCPA209		45	54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-26	1-5/8		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-27	1-11/16		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA209-28	1-3/4		54.2	120	90	54	25	13	108	M14	49.2	19	M14	2.2
UCPA210		50	57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-30	1-7/8		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-31	1-15/16		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA210-32	2		57.2	130	94	60	25	14	116	M16	51.6	19	M16	2.6
UCPA211		55	63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-32	2		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-34	2-1/8		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA211-35	2-3/16		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3
UCPA212		60	69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-36	2-1/4		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-38	2-3/8		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-39	2-7/16		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24

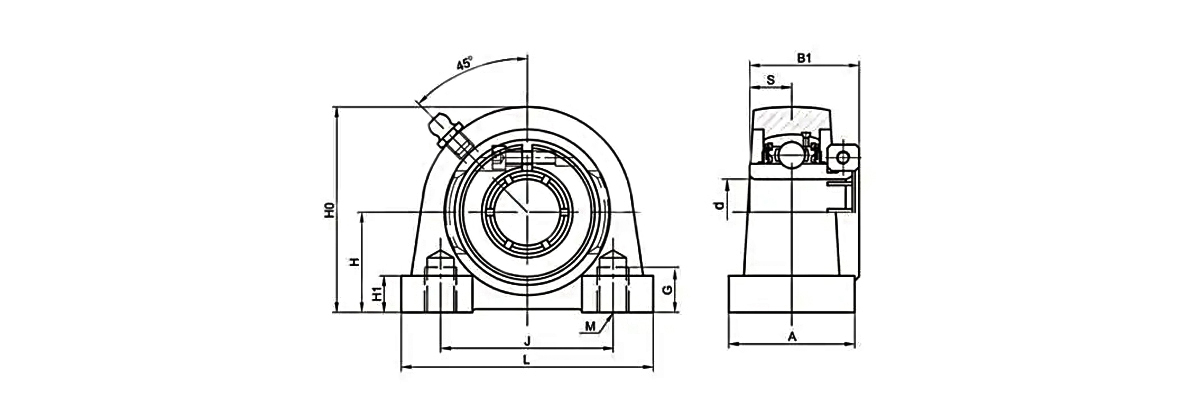

Aonad Uimh.	Seafta Dia		Toisí (mm)										Méid Bolt	Meáchan
	d		H	L	J	A	G	H1	Ho	M	B1	S	(mm)	(kg)
	(i)	(mm)	H	L	J	A	G	H1	Ho	M	B1	S	(mm)	(kg)
UEPA204		20	30.2	76	52	38	13	11	62	M10	33	12.7	M10	0.65
UEPA204-12	3/4		30.2	76	52	38	13	11	62	M10	33	12.7	M10	0.65
UEPA205		25	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-14	7/8		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-15	15/16		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA205-16	1		36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	0.85
UEPA206		30	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-17	1-1/16		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-18	1-1/8		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-19	1-3/16		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA206-20	1-1/4		42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	1.3
UEPA207		35	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-20	1-1/4		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-21	1-5/16		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-22	1-3/8		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA207-23	1-7/16		47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	1.7
UEPA208		40	49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA208-24	1-1/2		49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA208-25	1-9/16		49.2	116	84	54	20	13	100	M14	50.2	19	M14	2.12
UEPA209		45	54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-26	1-5/8		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-27	1-11/16		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA209-28	1-3/4		54.2	120	90	54	25	13	108	M14	50.2	19	M14	2.54
UEPA210		50	57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-30	1-7/8		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-31	1-15/16		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA210-32	2		57.2	130	94	60	25	14	116	M16	52.6	19	M16	3.25
UEPA211		55	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-32	2		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-34	2-1/8		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA211-35	2-3/16		63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	3.63
UEPA212		60	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-36	2-1/4		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-38	2-3/8		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7
UEPA212-39	2-7/16		69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	4.7

Aonad Uimh.	Seafta Dia		Toisí (mm)										Méid Bolt	Meáchan
	d		H	L	J	A	M	G	Ho	H1	B	S	(mm)	(kg)
	(i)	(mm)	H	L	J	A	M	G	Ho	H1	B	S	(mm)	(kg)
UCPW201		12	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.8
UCPW201-8	1/2		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.8
UCPW202		15	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW202-9	9/16		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW202-10	5/8		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.79
UCPW203		17	33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.77
UCPW203-11	11/16		33.3	65	50.8	32	M8	13	64	13	31	12.7	M8	0.77
UCPW204		20	33.3	65	50.8	32	M8	13	64	13	31	12.7	MS	0.76
UCPW204-12	3/4		33.3	65	50.8	32	M8	13	64	13	31	12.7	MS	0.76
UCPW205		25	36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-14	7/8		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-15	15/16		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW205-16	1		36.5	70	50.8	36	M10	13	70	13	34.1	14.3	M10	0.91
UCPW206		30	42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-17	1-1/16		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-18	1-1/8		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-19	1-3/16		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW206-20	1-1/4		42.9	98	76.2	38	M10	16	82	15	38.1	15.9	M10	1.42
UCPW207		35	47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-20	1-1/4		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-21	1-5/16		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-22	1-3/8		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW207-23	1-7/16		47.6	103	82.6	45	M10	19	93	15	42.9	17.5	M10	1.91
UCPW208		40	49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW208-24	1-1/2		49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW208-25	1-9/16		49.2	116	88.9	48	M12	19	99	15	49.2	19	M12	2.28
UCPW209		45	53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-26	1-5/8		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-27	1-11/16		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW209-28	1-3/4		53.9	120	95.3	48	M12	19	107	18	49.2	19	M12	2.61
UCPW210		50	57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-30	1-7/8		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-31	1-15/16		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28
UCPW210-32	2		57.2	135	101.6	54	M16	22	115	18	51.6	19	M16	3.28

Aonad Uimh.	Seafta Dia		Toisí (mm)										Méid Bolt	Meáchan
	d		H	L	J	A	M	G	H1	Ho	B	S	(mm)	(kg)
	(i)	(mm)	H	L	J	A	M	G	H1	Ho	B	S	(mm)	(kg)
UCPG201		12	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.8
UCPG201-8	1/2		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.8
UCPG202		15	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG202-9	9/16		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG202-10	5/8		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.79
UCPG203		17	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.77
UCPG203-11	11/16		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.77
UCPG204		20	33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.76
UCPG204-12	3/4		33.3	70	49	38	M8	14	11	64	31	12.7	M8	0.76
UCPG205		25	36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-14	7/8		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-15	15/16		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG205-16	1		36.5	75	50	38	M10	15	13	70	34.1	14.3	M10	0.91
UCPG206		30	42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-17	1-1/16		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-18	1-1/8		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-19	1-3/16		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG206-20	1-1/4		42.9	85	60	48	M10	17	13	84	38.1	15.9	M10	1.42
UCPG207		35	47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-20	1-1/4		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-21	1-5/16		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-22	1-3/8		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG207-23	1-7/16		47.6	100	68	48	M12	17	13	93	42.9	17.5	M12	1.91
UCPG208		40	49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG208-24	1-1/2		49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG208-25	1-9/16		49.2	110	78	54	M12	20	14	98	49.2	19	M12	2.28
UCPG209		45	53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-26	1-5/8		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-27	1-11/16		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG209-28	1-3/4		53.9	120	85	54	M12	20	14	106	49.2	19	M12	2.61
UCPG210		50	57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-30	1-7/8		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-31	1-15/16		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28
UCPG210-32	2		57.2	135	95	60	M16	21	14	114	51.6	19	M16	3.28

Aonad Uimh.	Seafta Dia		Toisí (mm)										Meáchan
	d		H	L	J	A	H1	H0	G	M	S	B	(kg)
	(i)	(mm)
UCTB201		12	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.77
UCTB201-8	1/2
UCTB202		15	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.75
UCTB202-9	9/16
UCTB202-10	5/8
UCTB203		17	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.74
UCTB203-11	11/16
UCTB204		20	33.3	73	50.8	38	10.9	65	13	3/8-16UNC	12.7	31	0.73
UCTB204-12	3/4
UCTB205		25	36.5	76	50.8	38	12	71	13	3/8-16UNC	14.3	34.1	0.83
UCTB205-14	7/8
UCTB205-15	15/16
UCTB205-16	1
UCTB206		30	42.9	102	76.2	38	12	86	16	7/16-14UNC	15.9	38.1	1.36
UCTB206-17	1-1/16
UCTB206-18	1-1/8
UCTB206-19	1-3/16
UCTB206-20	1-1/4
UCTB207		35	47.6	108	82.6	48	13	95	19	1/2-13UNC	17.5	42.9	1.83
UCTB207-20	1-1/4
UCTB207-21	1-5/16
UCTB207-22	1-3/8
UCTB207-23	1-7/16
UCTB208		40	49.2	117	88.9	48	13	100	19	1/2-13UNC	19	49.2	2.13
UCTB208-24	1-1/2
UCTB208-25	1-9/16
UCTB209		45	54	127	95.3	51	14	108	20	1/2-13UNC	19	49.2	2.75
UCTB209-26	1-5/8
UCTB209-27	1-11/16
UCTB209-28	1-3/4
UCTB210		50	57.2	140	101.6	51	14	117	22	5/8-11UNC	19	51.9	3.08
UCTB210-30	1-7/8
UCTB210-31	1-15/16
UCTB210-32	2
UCTB211		55	57.2	140	101.6	51	14	117.5	22	5/8-11UNC	22.2	55.6	3.37
UCTB211-32	2
UCTB211-34	2-1/8
UCTB211-35	2-3/16

Innealtóireacht Todhchaí na Gluaisne

Maidir le UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Imthacaí Bloc Pillow Bonn Tapped suppliers and OEM/ODM Imthacaí Bloc Pillow Bonn Tapped company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Tuilleadh Fúinn Ukl Bearing Manufacturing Co.,Ltd

0+

blianta

Taithí Tionscail
0+

Éagsúlacht múnla
0+

Líon Fostaithe
0

$

Luach onnmhairithe bliantúil

Deimhniú Onóra

Nuacht

Cén fáth go bhfuil Bearing Roller Sorcóireach NU 309 Excels i Dearthaí Mótair agus Giarbhosca?
04 Jun, 2026
Eochair Beir leat: Tá Bearing NU 309 ar fheabhas mar Imthacaí Snámh Maidir le dearaí mótair agus giarbhosca nuair is ábhar imní ríthábhachtach é leathnú teirmeach an tseafta, is é an ...

LÉIGH TUILLEADH
Conas Fáinne Nilos 2206 AV a shuiteáil (Treoir Céim ar Chéim)
28 May, 2026
Suiteáil leis an taobh oscailte os comhair an imthacaí Chun a shuiteáil i gceart an 2206 AV Fáinne Nilos, cuir é sa chaoi is go díríonn an taobh dronnach (oscailte) i dt...

LÉIGH TUILLEADH
Conas an Bearing Liathróid Teagmhála Ceart Uillinn a Roghnú le haghaidh Feidhmchláir Ardluais?
21 May, 2026
Chun an chomhpháirt rollta is fearr a roghnú le haghaidh innealra rothlach ardluais, tá gá le tuiscint dhomhain ar choinníollacha oibriúcháin, céimseata inmheánach, agus bainistíocht theirmeach. I ...

LÉIGH TUILLEADH
Beachtas Faoi Bhrú: Príomhfhachtóirí Tiomána Trealamh Liachta Roghnú Bearings
14 May, 2026
I réimse na teicneolaíochta leighis atá ag forbairt go tapa, is féidir fiú an chomhpháirt is lú a chinneadh cé chomh rathúil is atá feiste tarrthála. Ina measc seo, imthacaí trealamh leighi...

LÉIGH TUILLEADH
